The Integrated Power Conversion and Voltage Boosting Cabinet serves as the power unit of energy storage systems.

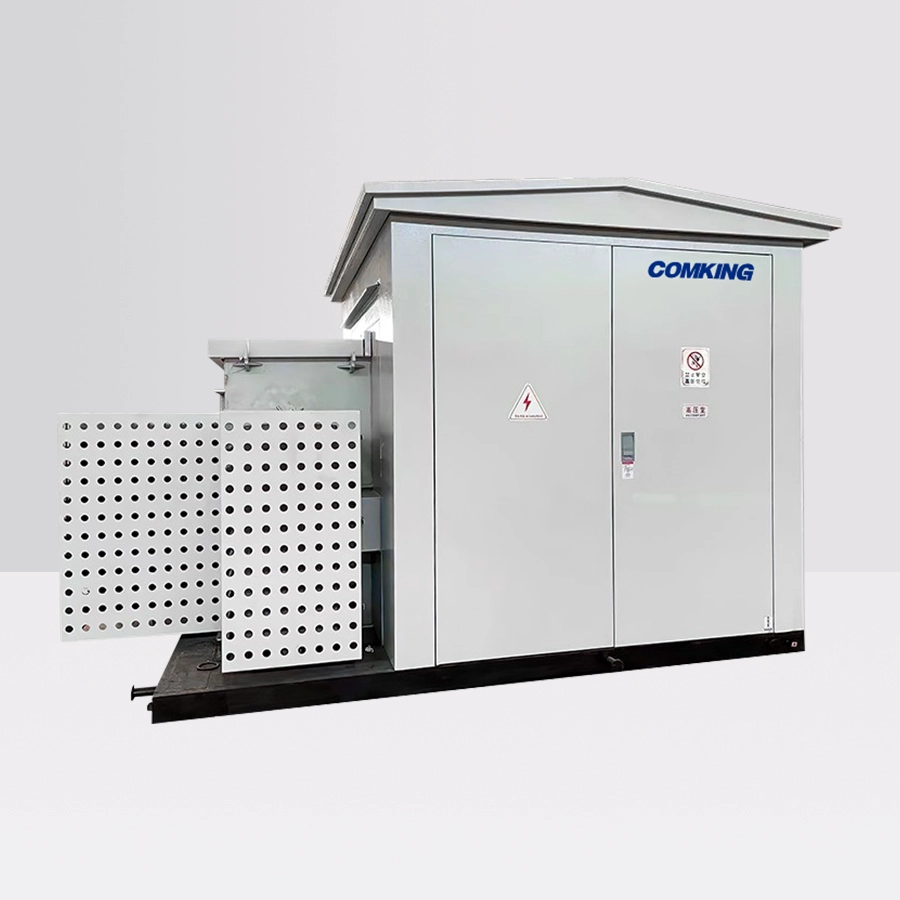

Chinese-type delivery substation, commonly referred to as the delivery substation manufactured with national standard. The Chinese-type delivery substation YBF口-40.5/0.69kV is a power equipment that integrates high-voltage switchgear, transformer, and protective fuses in the oil tank, with low-voltage switchgear and corresponding auxiliary equipment.

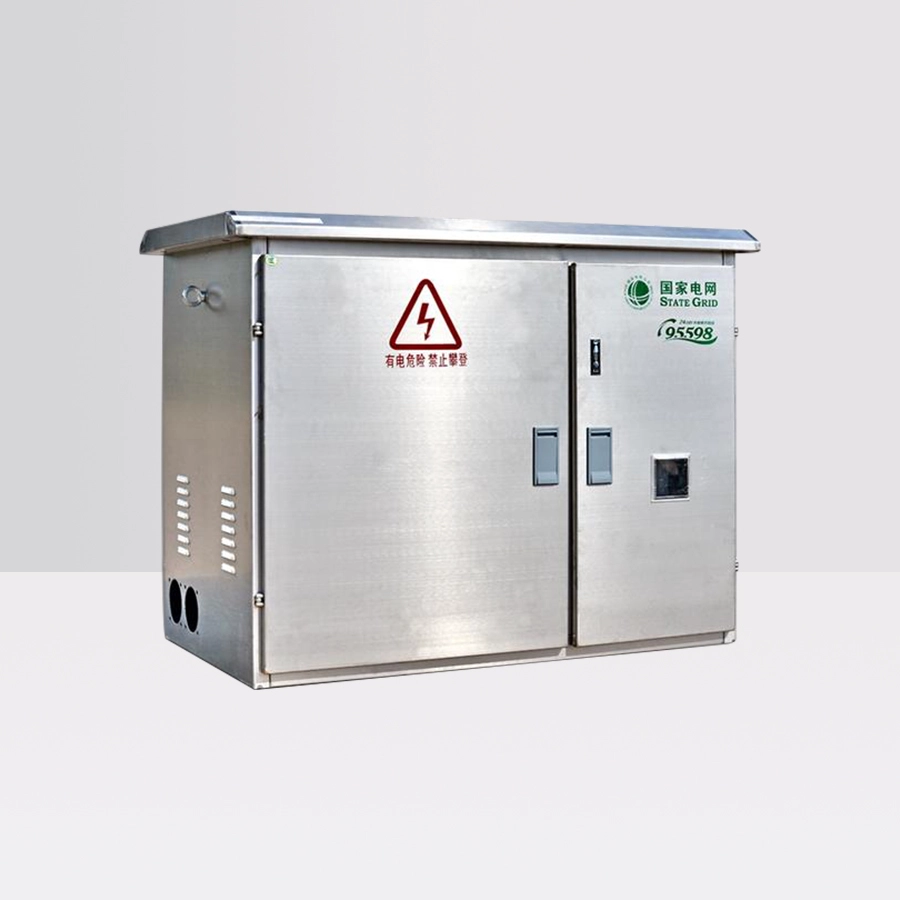

The JP series low-voltage comprehensive distribution switchgear is suitable for transmission and distribution systems with AC 50Hz and rated voltage below 0.4kV.

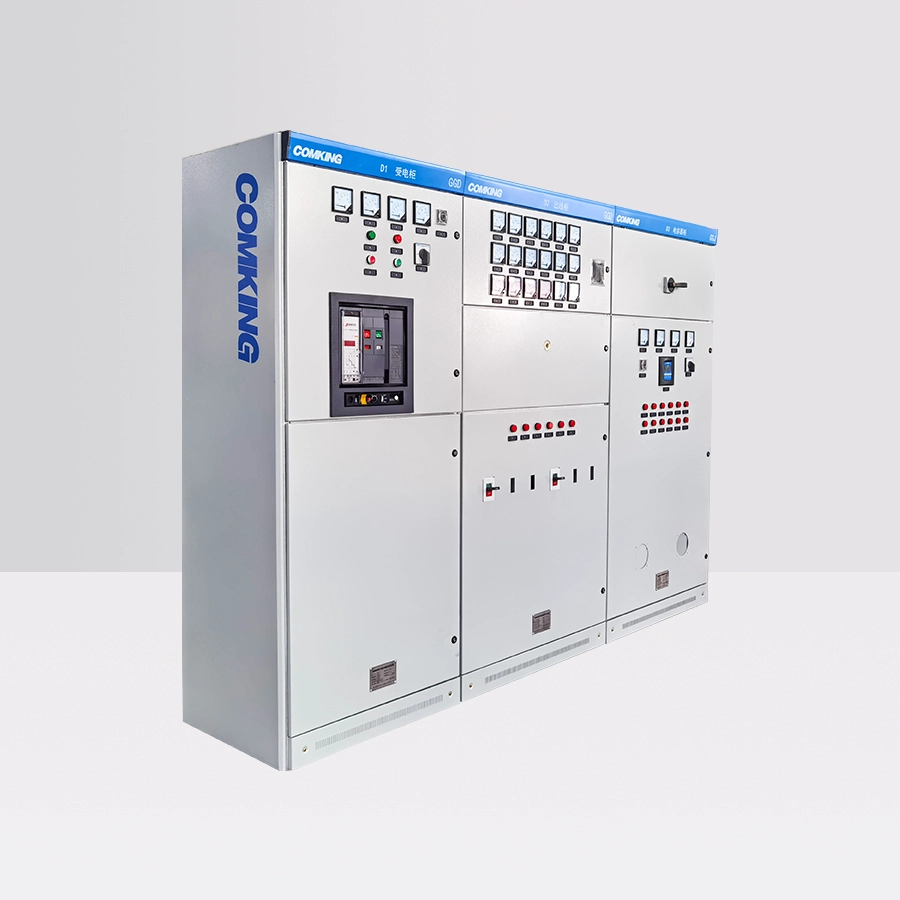

GGD AC low-voltage distribution switchgear is suitable for AC 50Hz, rated working voltage 380V, rated operating current 1000-3150A distribution systems of power users such as substations, power plants, and industrial and mining enterprises. It is used for energy conversion, distribution, and control of power, lighting, and power generation and distribution equipment.

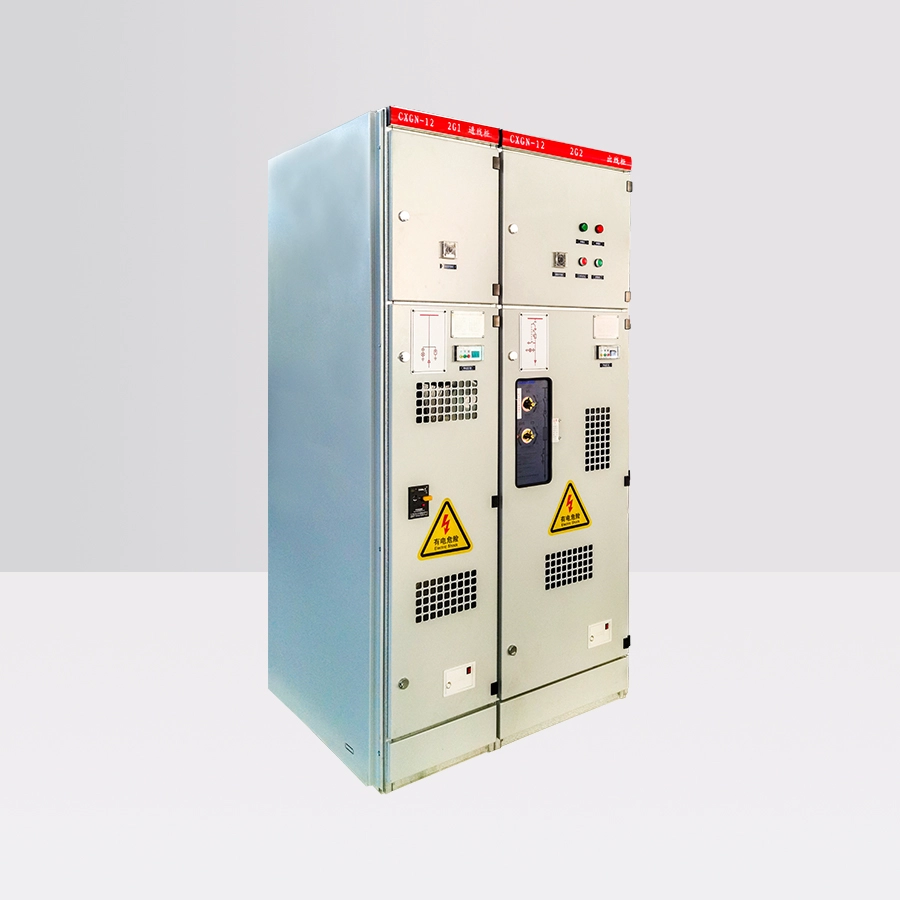

The CXGN-12 box type fixed AC metal enclosed switchgear is a high-voltage equipment of the delivery substation independently developed by our company.

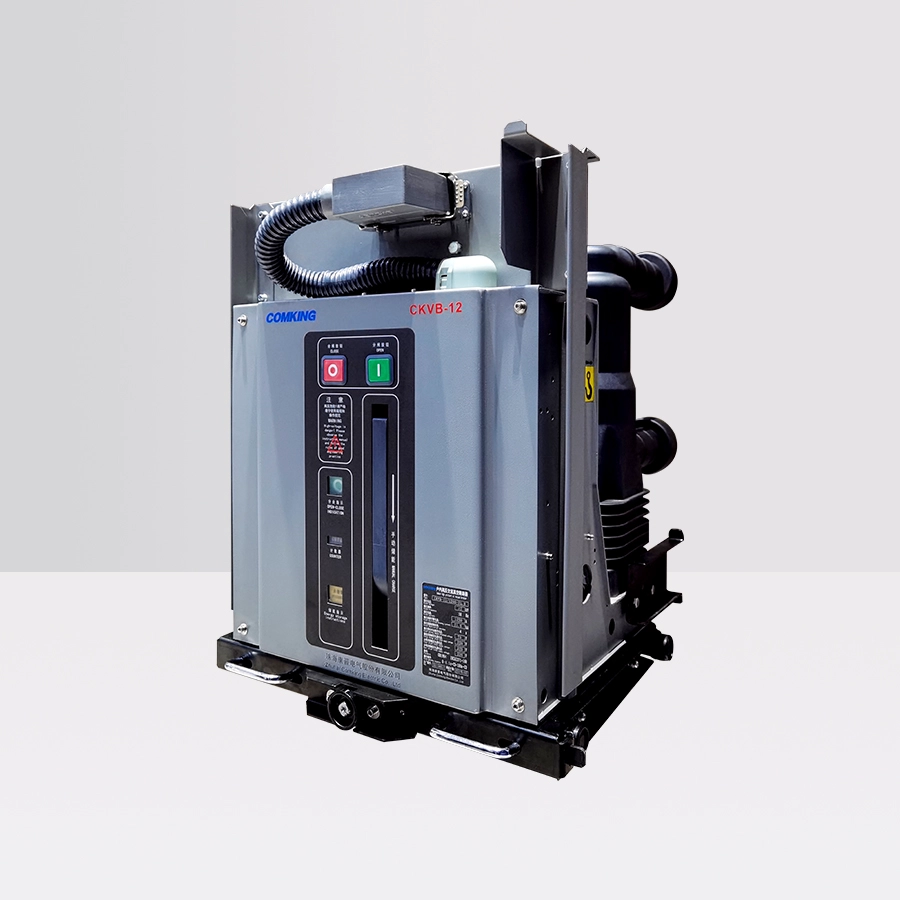

CKVB-12 indoor vacuum circuit breaker is suitable for indoor switchgear of three-phase AC 50Hz and rated voltage 12kV power system. It is suitable for power plants, substations and distribution rooms in power systems, especially in places where frequency operation at rated operating current or multiple switching and closing of short-circuit currents is required.

1.Stable insulation performance：Vacuum bubble installed inside the ring network resin insulation cylinder.
2.High protection level：Interlocking mechanism, automatically meeting the "five prevention" requirements.
3.Good suitability：Vacuum switch, capable of breaking 20kA short-circuit current, combined with protective devices, can achieve various protection functions.

KYN61-40.5 withdrawable metal-clad indoor AC switchgear (hereinafter referred to as withdrawable switchgear), suitable for rated voltage 40.5kV three-phase AC, rated frequency 50Hz single busbar, is a new type of high-voltage withdrawable switchgear used for receiving and distributing electrical energy.

10kV European-type delivery substation is a type of prefabricated kiosk type substation, which is basically the same as the principle of traditional civil engineering electrical rooms. It is to input high-voltage power through high-voltage switchgear, reduce voltage through transformers, and then distribute electricity through low-voltage switchgear.

KYN28A-12/24 metal-clad withdrawable switchgear (hereinafter referred to as KYN28A-12/24 switchgear) is suitable for three-phase AC 50Hz, 3.6-24kV single busbar and single busbar segmented power systems, and is used as a transmission control device for receiving and distributing electrical energy.

The GCK/GCS/MNS low-voltage withdrawable switchgear (hereinafter referred to as the switchgear) consists of two parts: the power distribution center (PC) cabinet and the motor control center (MCC). This device is suitable for control electrical systems with an AC frequency of 50 (60) Hz, a rated working voltage of 660V-690V or less, and a rated current of 4000A or less (where the rated current of the MNS cabinet can reach 6300A).
