15kV Shielded Elbow Type PT Plug
- The 15kV/200A shielded elbow type PT plug is made of high-quality raw materials by layered injection molding, suitable for providing operating power or connecting the high-voltage side of measuring protection transformers for electric operating mechanisms.
►Introduction
The 15kV/200A shielded elbow type PT plug is made of high-quality raw materials by layered injection molding, suitable for providing operating power or connecting the high-voltage side of measuring protection transformers for electric operating mechanisms. The electrical performance of the product is superior to national standards, and the plug and unplug connection is simple and convenient. It has a reliable anti loosening device, and after installation, it forms a fully sealed and shielded structure, which is safe, beautiful, and superior in performance.
►Features
- Удовлетворительное решение проблемы концентрации электрического поля в высоковольтных соединениях и повреждений внешнего экранирующего слоя кабеля14;
- Изготовлен из высококачественной резины EPDM, демонстрирующей превосходные характеристики устойчивости к электрической короне, свободному разряду и атмосферным воздействиям5;
- Прост в установке, оснащён надёжным противооткручивающим механизмом. Полностью изолированная, герметичная и экранированная конструкция
►Model Description
| Model | Rated Voltage | Rated Current | Section Applicable (XLPE Cable) |
| CKPZPT-15/200 | 15kV | 200A | 35mm2 ~120mm2 |
►Main Electric Performance
| No. | Testing Items | Testing Standards |
| 1 | Power Frequency Withstand Voltage (AC) | 39kV, 5min |
| 2 | Partial Discharge | ＜15kV, ≤10pC |
| 3 | Impulse Voltage Test | ±95kV, 10 times for each |
| 4 | Shielded Resistance | ＜5kΩ |

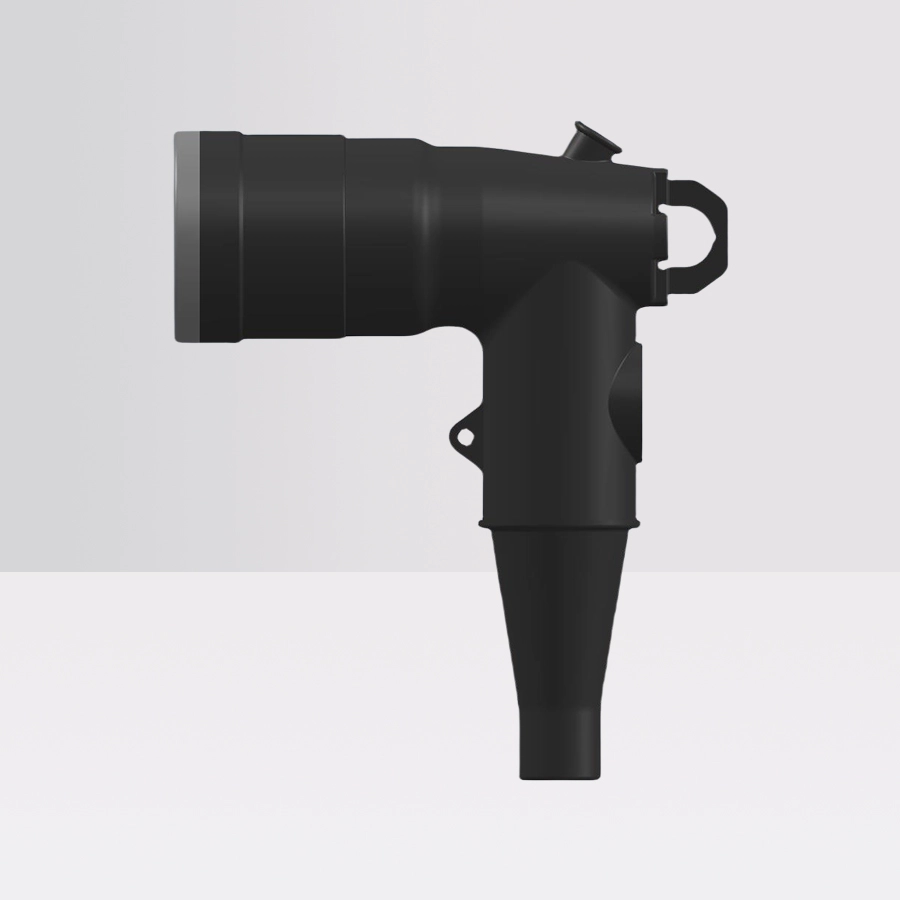

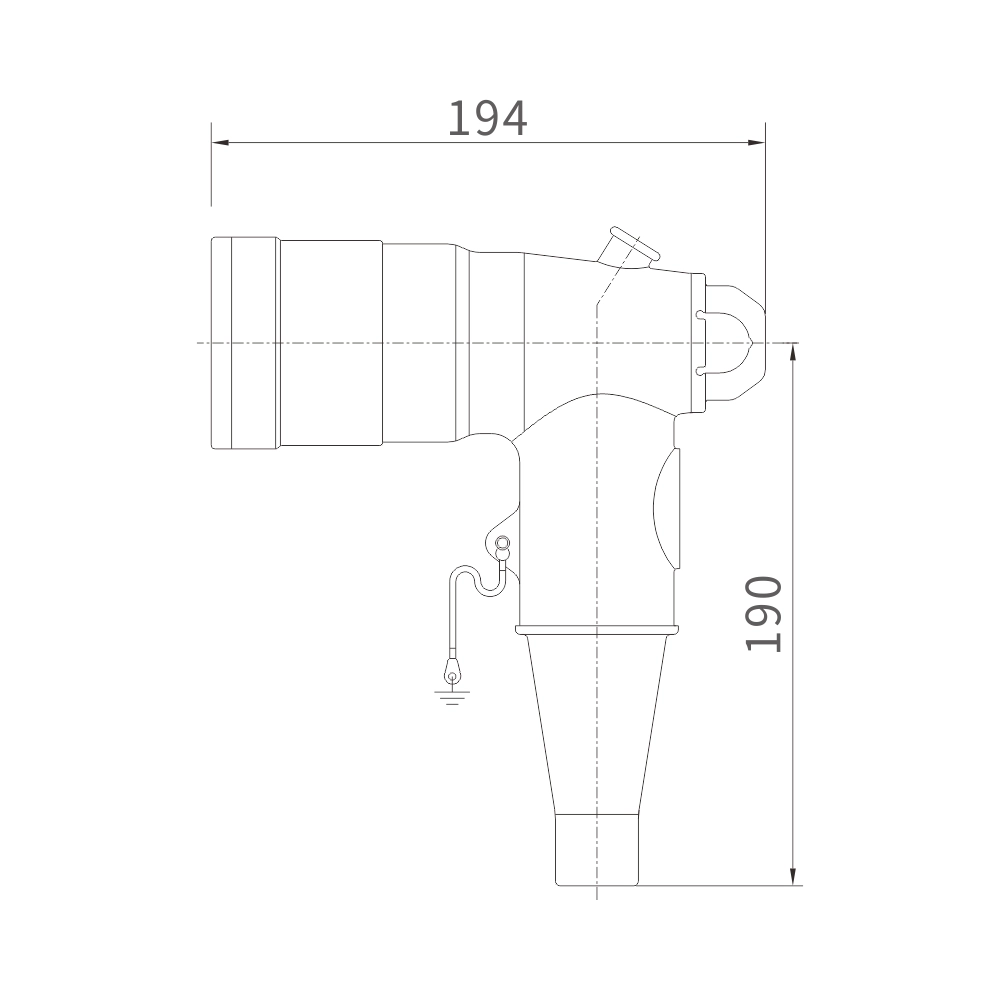

►Dimensions and Pictures
Click Fully Insulated, Fully Sealed, Fully Shielded Connector to learn more about the products.
