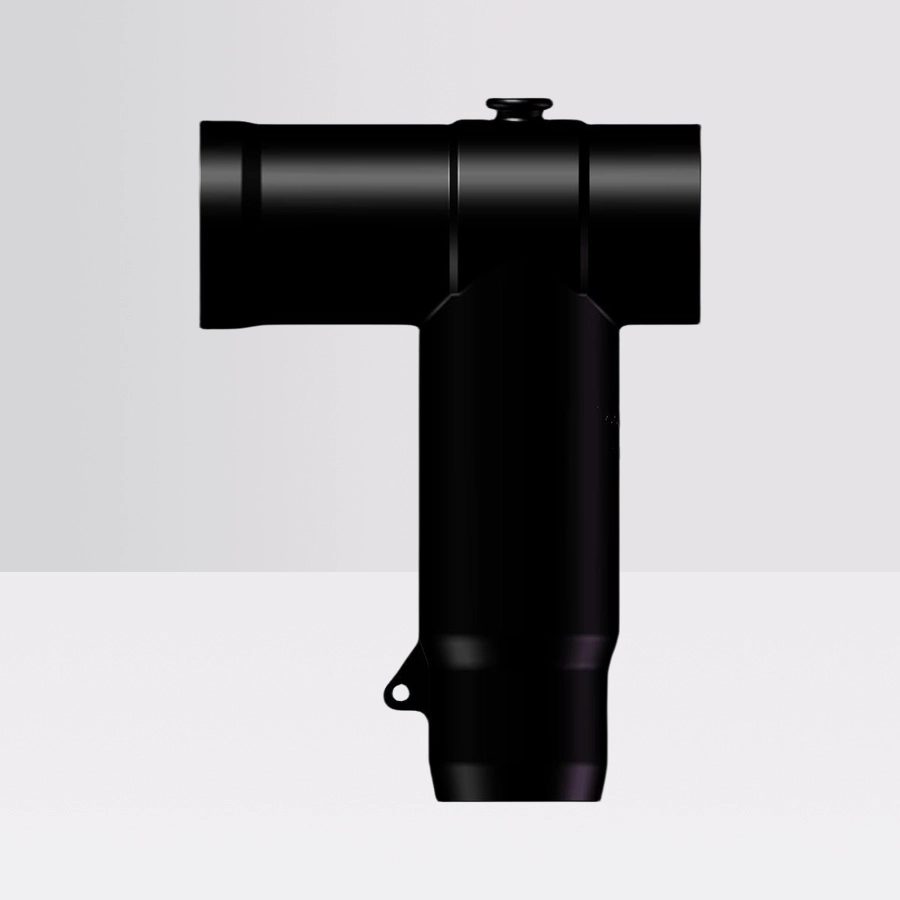

15kV Shielded Front Connector
- Made of high-quality raw materials by layered injection molding, the 15kV/630A Shielded Front Connector is suitable for ring main units, delivery-type substations, cable branch boxes and other occasions.
►Introduction
Made of high-quality raw materials by layered injection molding, the 15kV/630A Shielded Front Connector is suitable for ring main units, delivery-type substations, cable branch boxes and other occasions. With electric performance higher than national standards, it is easy to be installed and forms a fully sealed and shielded structure after installation, ensuring safety, aesthetics and excellent performance.
►IntroductionFeatures
- Satisfactorily solving the problem of electric field stress concentration at high-voltage connections and fractures in cables’ outer shielded layer;
- Made of high-quality EPDM rubbers, which presents excellent performance in resistance against electric corona, free discharge and weather;
- Fully insulated, fully sealed, and fully shielded.
►Model Description
| Model | Rated Voltage | Rated Current | Section Applicable (XLPE Cable) |
| CKPQT-15/630 | 15kV | 630A | 35mm2 ~ 500mm2 |
►Main Electric Performance
| No. | Testing Items | Testing Standards |
| 1 | Power Frequency Withstand Voltage (AC) | 39kV, 5min |
| 2 | Partial Discharge | ＜15kV, ≤10pC |
| 3 | Impulse Voltage Test | ±95kV, 10 times for each |
| 4 | Shielded Resistance | ＜5kΩ |
►Dimensions and Pictures
