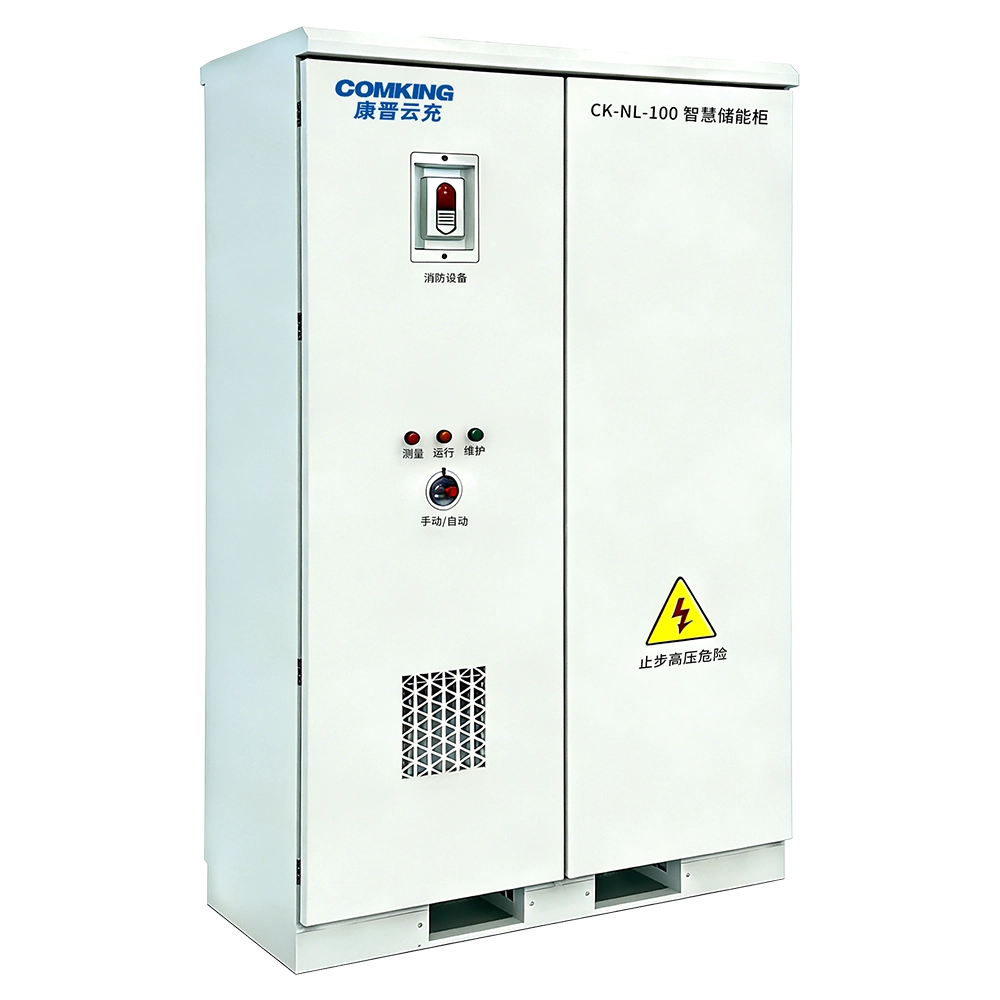

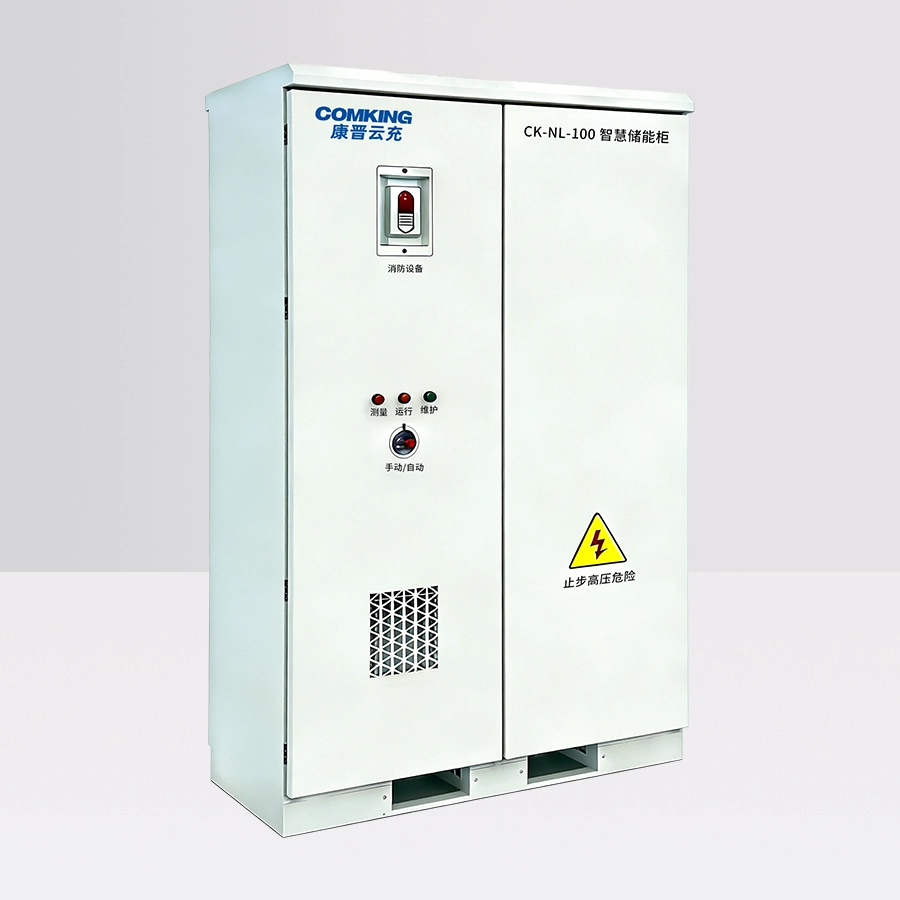

CK-NL-100/112 Smart Energy Storage Cabinet
- The CK-NL-100/112 Smart Energy Storage Cabinet is an efficient storage solution developed by COMKING Cloud Charging for small-to-medium C&I and distributed energy scenarios, with rated energy of 100kWh/112kWh, utilizing high-cycle-life LFP cells and a self-developed BMS for precise cell status monitoring with multiple electrical safeguards.
►Overview
The CK-NL-100/112 Smart Energy Storage Cabinet is an efficient storage solution developed by COMKING Cloud Charging for small-to-medium C&I and distributed energy scenarios, with rated energy of 100kWh/112kWh, utilizing high-cycle-life LFP cells and a self-developed BMS for precise cell status monitoring with multiple electrical safeguards. The product uses efficient air cooling for stable operation in wide temperature ranges with cycle efficiency exceeding 86%. Its modular design supports parallel expansion with convenient installation. It provides peak-valley arbitrage and emergency backup, supports seamless on/off-grid switching and remote O&M with IP54 protection for multi-environment deployment, delivering cost-reducing, efficiency-boosting green energy solutions.
►Product features
Flexible Scalability
Modular design supporting parallel expansion with convenient installation and deployment.
Safe and Reliable
Multiple protection layers, long-life LFP cells, and IP54 protection for multi-environment adaptability.
Intelligent Control
Seamless on/off-grid switching, remote O&M, supporting peak-valley arbitrage and emergency backup.
►Technical parameter
|
Model |
CK-NL-100 |
CK-NL-112 |
|
Battery Type |
LFP |
|
|
Cell Specification |
280Ah |
314Ah |
|
Configuration |
1P112S |
|
|
Rated Voltage |
DC 358.4V |
|
|
Operating Voltage |
DC 313.6~403.2V |
|
|
Rated Energy |
100kWh |
112kWh |
|
Rated Power |
50kW |
|
|
Dimensions (W×D×H) |
W1300*D1100*H2380mm |
|
|
Cooling Method |
风冷 |
|
|
Weight |
≤2205kg |
|
|
Rated Frequency |
50Hz |
|
|
AC Output |
3P+N |
|
|
System Protection Rating |
IP54 |
|
|
Applicable Standards |
GB/T36276-2023、UN38.3 |
|
|
Altitude |
≤2000m (derating required above 2000m) |
|
|
Operating Temperature |
-25℃~65℃ (derating above 45℃) |
|
|
Relative Humidity |
≤95% (non-condensing) |
|
|
Fire Suppression System |
Aerosol/Perfluorohexanone |
|
|
Cycle Life |
≥6000 cycles |
|
|
Communication |
Ethernet/CAN/RS485/Dry contact |
|
|
Protection |
Over-temp., I/O over/under-voltage, reverse polarity, output over-current, etc. |
|
|
Max. Efficiency |
≥86% |
|
