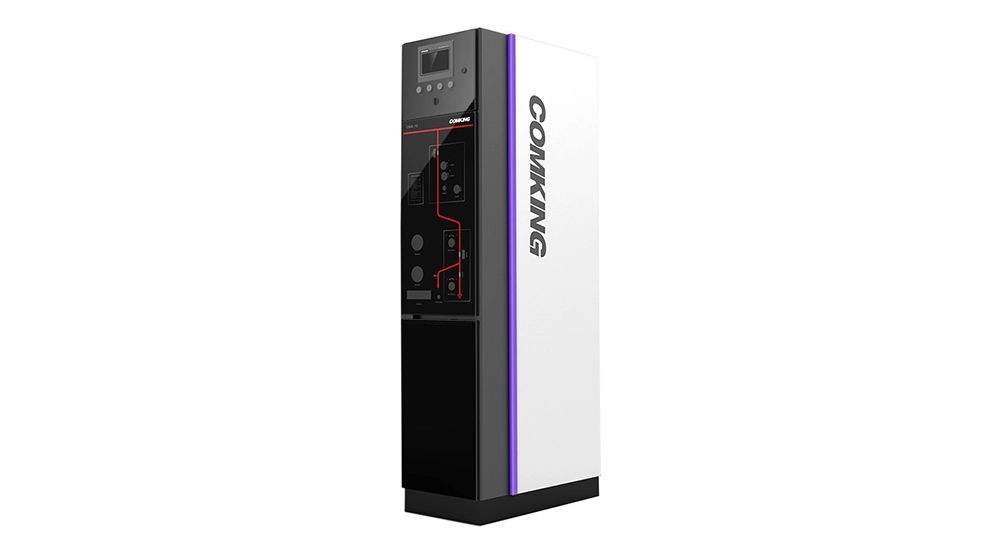

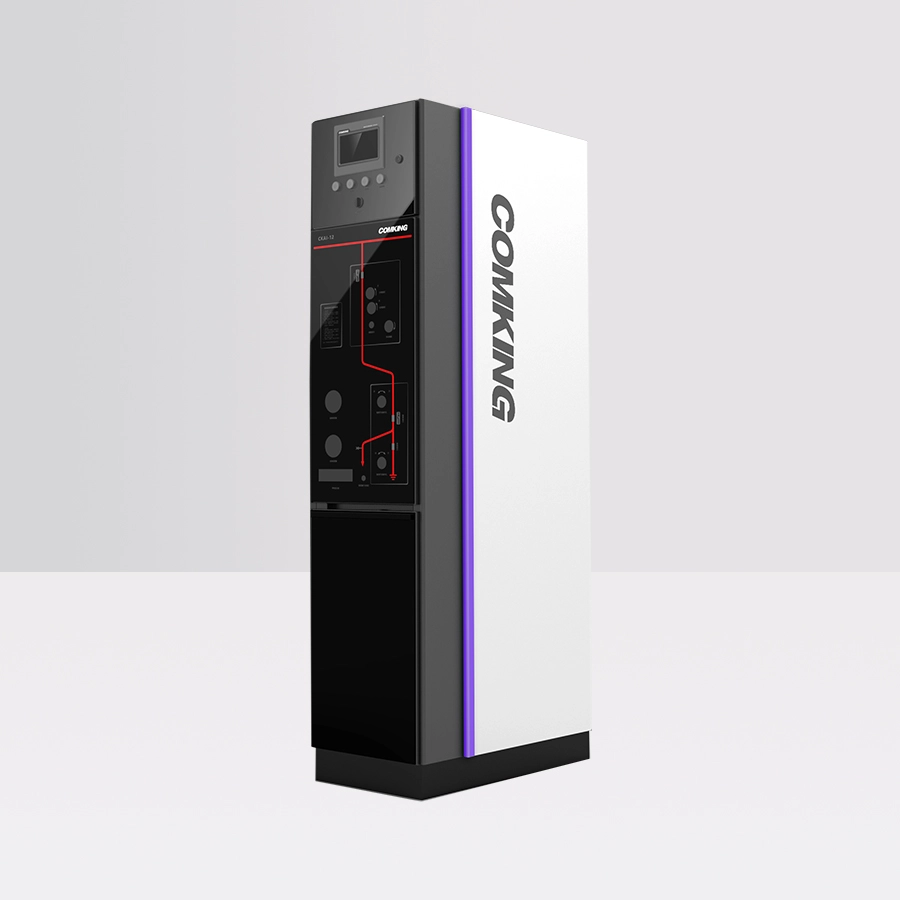

CKAI-12 Series Atmospheric Sealed Air Insulated Ring Main Unit
- CKAI- 12 series atmospheric pressure sealed air insulated ring main unit uses dry air as insulating medium, and the micro-atmospheric vacuum interrupter is used to extinguish the arc. Its disconnector and arc chamber are completely enclosed in a stainless steel gas box of dry air, which is fully insulated and sealed.
►Product overview
CKAI- 12 series atmospheric pressure sealed air insulated ring main unit uses dry air as insulating medium, and the micro-atmospheric vacuum interrupter is used to extinguish the arc. Its disconnector and arc chamber are completely enclosed in a stainless steel gas box of dry air, which is fully insulated and sealed. The gas box is made of imported stainless steel plate and welded by advanced robot welding technology. The protection level of the inflatable shell reaches I P 65. The bus adopts lateral expansion structure, which is mature in technology and convenient to install, and has the requirements of environmental protection, safety, reliability, compact structure, maintenance-free and long service life. It is a completely environment-friendly switchgear product with high-tech core devices and new technologies, new processes and new materials. Its main functional units are: V unit (circuit breaker unit) and C unit (load switch unit).
►Technical parameter
| serial number | name | unit | parameter | |||
| CKAI-12/C | CKAI-12/V | |||||
| 1 | Rated voltage | kV | 12 | |||
| 2 | Rated frequency | Hz | 50 | |||
| 3 | Rated current | A | 630 | |||
| 4 | Rated insulation level | 1min power frequency withstand voltage | Ground and interphase | kV | 42 | |
| fracture | kV | 48 | ||||
| Rated lightning impulse withstand voltage | Ground and interphase | kV | 75 | |||
| fracture | kV | 85 | ||||
| 5 | Rated closed-loop interrupting current | A | 630 | / | ||
| 6 | Rated cable charging breaking current | A | 10 | 25 | ||
| 7 | Rated short-circuit breaking current | kA | / | 25 | ||
| 8 | Rated short-term withstand current | kA | 20 | 25 | ||
| 9 | Rated peak withstand current | kA | 50 | 63 | ||
| 10 | Rated short-circuit closing current (peak value) | kA | 50 | 63 | ||
| 11 | Mechanical life | time | 10000 | 20000 | ||
| 12 | Mechanical life of disconnector and earthing switch | time | 3000 | |||
| 13 | loop resistance | μΩ | ≤150 | |||
| 14 | Gas rated pressure (20℃ gauge pressure) | Mpa | 0 | |||
| 15 | Protection grade of closed inner shell | / | IP65 | |||
| 16 | Enclosure protection grade | / | IP4X | |||
►Product features
Environmental protection and safety: air is used as insulating medium, vacuum arc extinguishing, and SF6 gas is not included. More than 95% of the materials are environmentally-friendly and recyclable, so as to minimize their impact on the environment.
Compact structure: small volume, modular and maintenance-free design; Circuit breaker, load switch, disconnector, sealed box, operating mechanism and cabinet are independent modules, forming standardized functional units, which is convenient for factory prefabrication and assembly.
Easy to expand: easy to expand, the operating mechanism has two kinds of mechanisms: spring and permanent magnet. Lower isolation and lower grounding structure, with overall dimensions of 500mm× wide × 920mm× deep × 2000mm； high; Side expansion, common box, convenient installation and expansion.
Safe and reliable: the primary high-voltage components are completely enclosed in a stainless steel sealed box, with protection grade IP65 and overall maintenance-free design; The sealed box body balances the internal and external gas pressures through the device with air filtering function, so that the air pressure in the sealed box body is always the same as the ambient atmospheric pressure.
Excellent performance: After electric field simulation analysis, calculation and optimization, the product has excellent electrical performance, uniform electric field and no partial discharge problems or hidden dangers.
High degree of intelligence: meet the requirements of smart grid and intelligent operation and maintenance of power grid.
