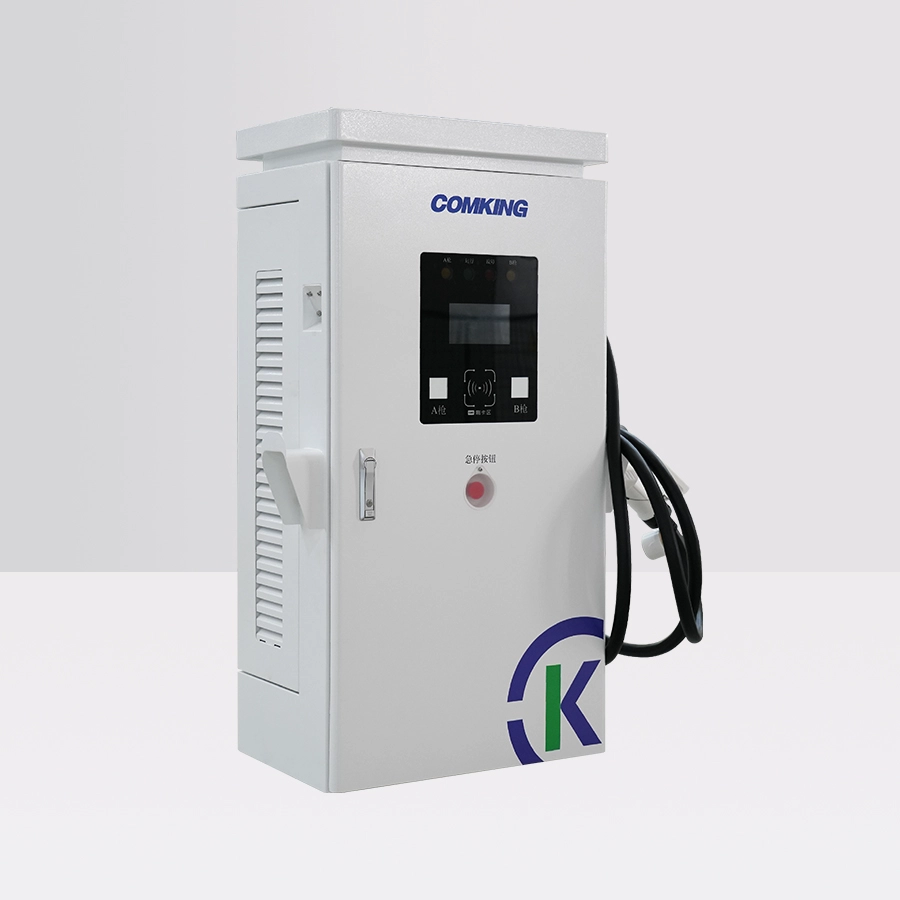

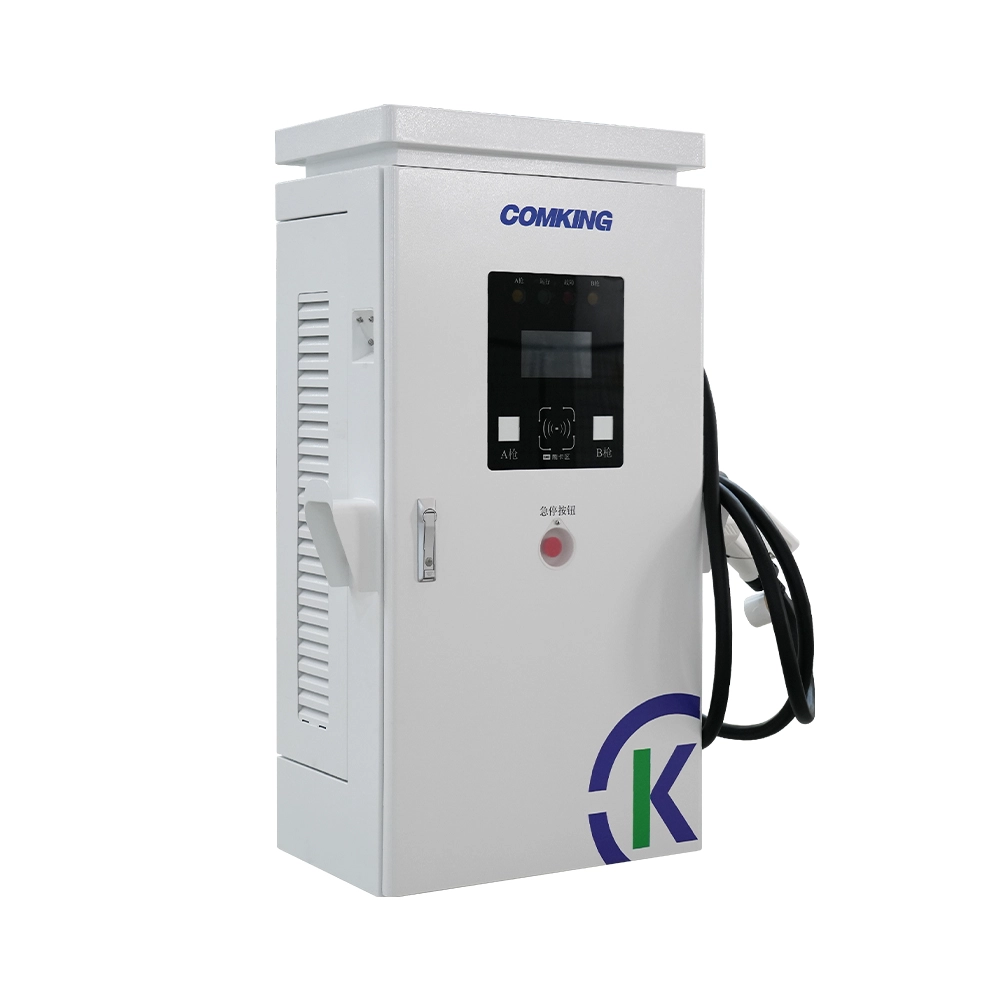

CKEV-DC60/80 Integrated DC Charger
- The 60kW/80kW integrated DC charger integrates the charger, charging interface, human-computer interaction interface, communication, and billing components into a single unit, suitable for outdoor fast DC charging of electric vehicles. It has the capability to safely and automatically charge the battery of electric vehicles to full capacity.
►Overview
The 60kW/80kW integrated DC charger integrates the charger, charging interface, human-computer interaction interface, communication, and billing components into a single unit, suitable for outdoor fast DC charging of electric vehicles. It has the capability to safely and automatically charge the battery of electric vehicles to full capacity. The charger dynamically adjusts the charging current or voltage parameters based on data provided by the Battery Management System (BMS), executing corresponding actions to complete the intelligent charging process. Additionally, the standby screen and the screens displayed before and after charging support the setting and configuration of customizable advertising content. It provides DC charging services for electric vehicles such as electric cars, electric taxis, and electric buses that comply with DC interface standards.
►Product features
High charging power, with a wide range of output current and voltage variations to meet diverse needs.
User-friendly operation, supporting plug-and-charge functionality.
Multiple communication interfaces for robust connectivity and remote control capabilities.
Equipped with multi-layered safety systems, including over-current protection, over-voltage protection, and more, ensuring secure charging.
►Technical parameter
| Category | Parameter | ||
| Basic Specifications | Model | CKEV-DC60 | CKEV-DC80 |
| Rated Power | 60kW | 80kW | |
| Number of Guns | 1 or 2 | ||
| Cooling Method | Smart Air Cooling | ||
| Communication | Ethernet/4G | ||
| Protocol | OCCP1.6 | ||
| Display | 7-inch touch screen | ||
| Activation | Scan Code/VIN Code/Plug and Charge/Manual/Swipe Card | ||
| Environment | Outdoor（IP54） | ||
| Charging Interface | CCS2*2 | ||
| Cable Length | 5m (customizable) | ||
| Protection | Overvoltage, undervoltage, overload, overcurrent, short-circuit, ground fault, overtemperature, Lightning, emergency stop, leakage protection. | ||
| Installation | Floor mounted | ||
| Input | Voltage | AC380V±15%，3P+N+PE | |
| Frequency | 45-65HZ | ||
| Power factor | ≥0.99 | ||
| Harmonic wave | ≤5% | ||
| Output | Voltage | 200-1000V | |
| Max. Current | 200A | 250A | |
| Peak Efficiency | ≥95% | ||
| Output voltage error | ≤±0.5% | ||
| Output current error | when≥30A，≤±1%: when<30A，≤±0.3A | ||
| Voltage regulation accuracy | ≤±0.5% | ||
| Current regulation accuracy | ≤±1% | ||
| Peak-to-peak ripple | ≤±1% | ||
| Current-unbalance | ≤3% | ||
Click 60kW/90kW Charging Pile Wholesales to learn more.
