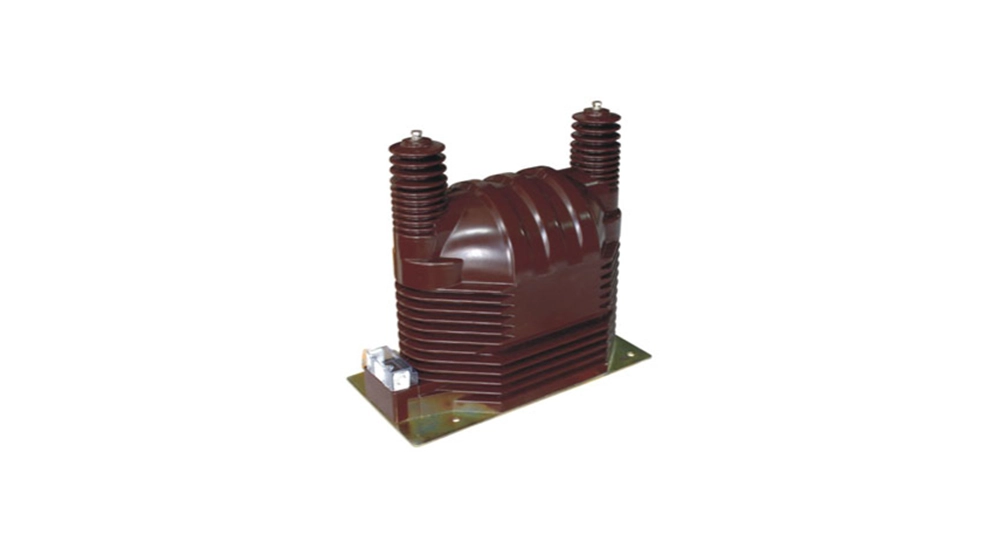

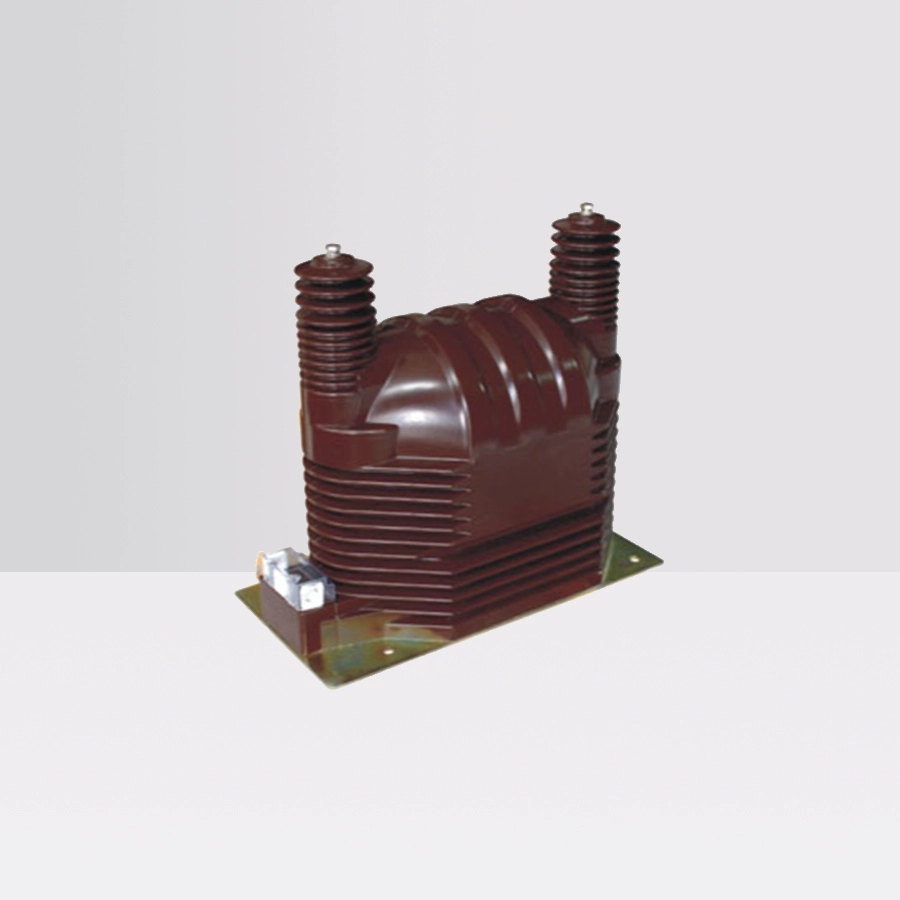

JDZ-35 Voltage Transformer
- This transformer features a fully enclosed epoxy resin cast insulation structure, suitable for AC power systems with rated frequencies of 50/60Hz and rated voltages up to 35kV. It is designed for voltage measurement, energy metering, and relay protection applications.
This transformer features a fully enclosed epoxy resin cast insulation structure, suitable for AC power systems with rated frequencies of 50/60Hz and rated voltages up to 35kV. It is designed for voltage measurement, energy metering, and relay protection applications. The product offers compact dimensions, lightweight construction, and supports multiple installation dimension configurations.
Parameter Table
| Rated Voltage Ratio (kV) | Accuracy Class Combination | Rated Output (VA) | Limit Output (VA) | Rated Insulation Level (kV) | Remarks |
| 35/0.1/0.1 | 0.5/3P | 50/50 | 400 | 40.5/95/185 | Full Insulation |
| 35/√3:0.1/√3:0.1/3 | 0.5/3P | 50/50 | Semi-insulation | ||
| Note: If user-required parameters exceed the specifications in the above table, please consult with our customer care team. | |||||

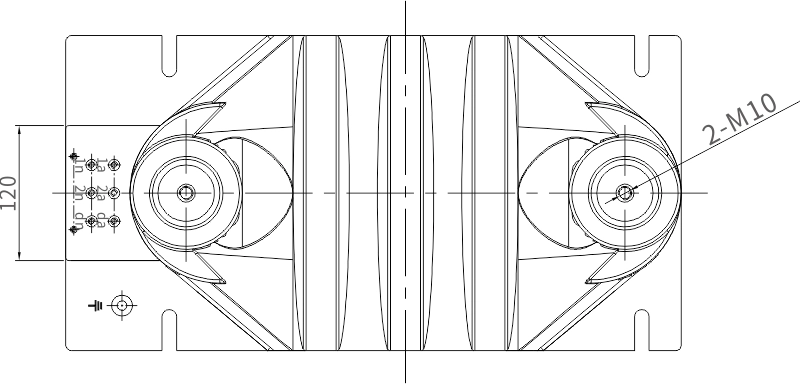

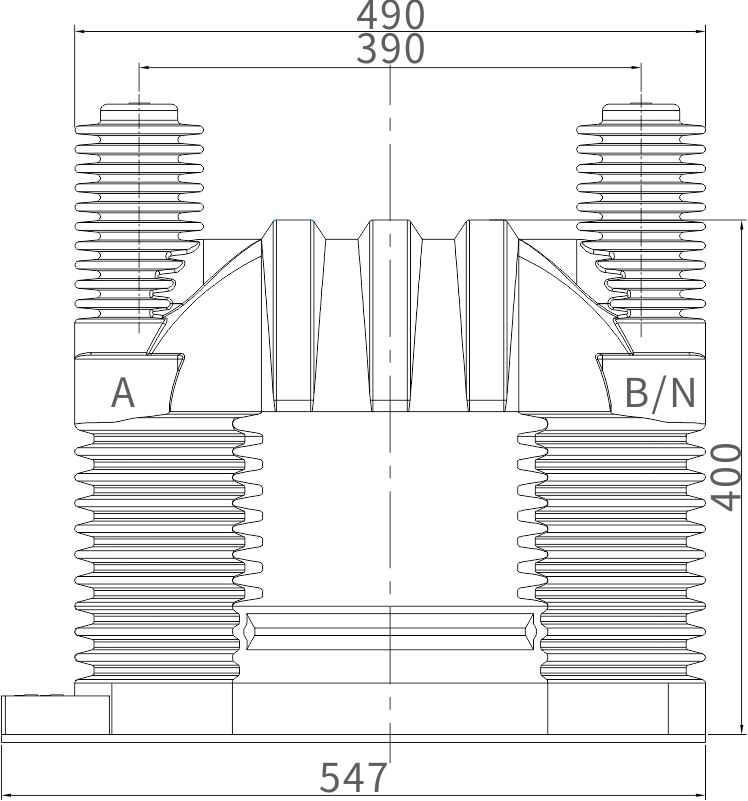

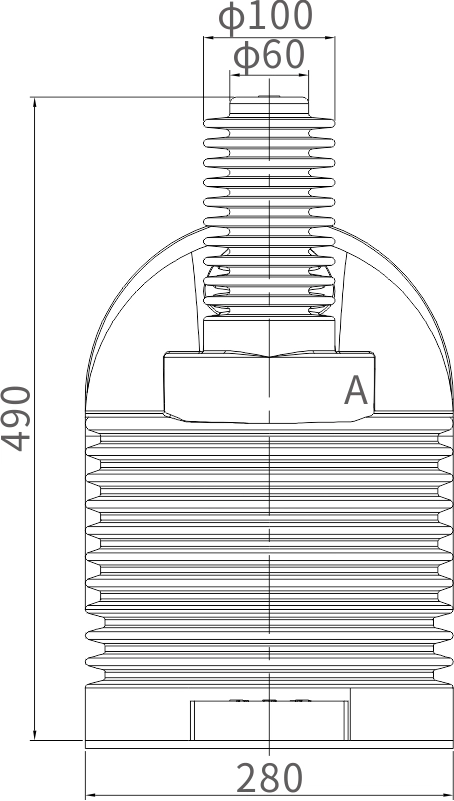

Outline Dimensions Diagram
