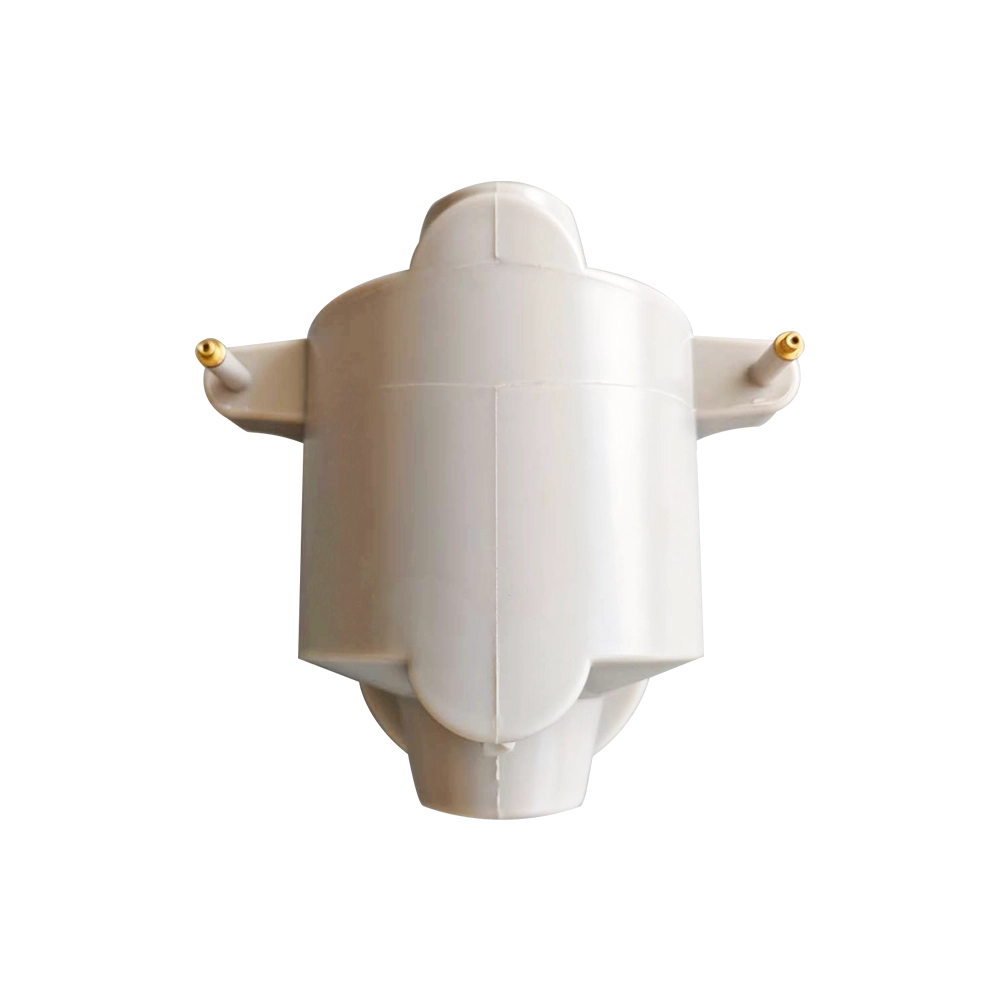

JDZW-10S Outdoor Voltage Transformer for Pole-mounted Switches
- It is suitable for use in outdoor environments with UV resistance, as well as pollution and moisture resistance, and is also applicable for use in tropical regions.
JDZW-10S Outdoor Voltage Transformer for Pole-mounted Switches
This series of Voltage Transformers features a post-type structure with fully enclosed epoxy resin casting. It is suitable for use in outdoor environments with UV resistance, as well as pollution and moisture resistance, and is also applicable for use in tropical regions. The transformer requires no special maintenance, only periodic removal of surface contaminants. Thanks to the fully enclosed epoxy resin casting structure, the transformer is compact in size and light in weight, and suitable for installation at any position and in any direction.
| Rated Voltage Ratio (kV) | Combination of Accuracy Classes | Rated Output (VA) | Limiting Output (VA) | Rated Insulation Level (kV) |
| 10/0.22 | 3 | 150 | 300 | 12/42/75 |
Note: If the parameters required by the user exceed the range specified in the above table, please negotiate and confirm with our company.
