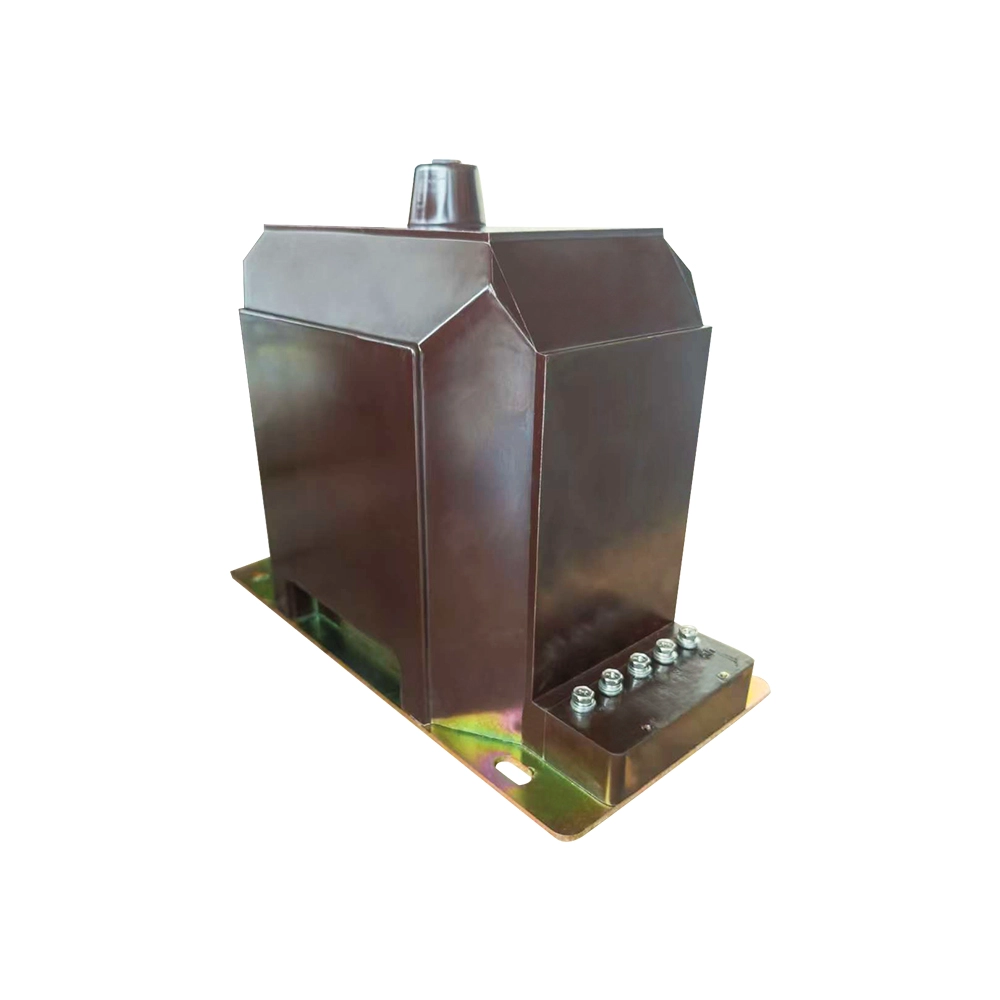

JDZX-20 Voltage Transformer
- It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 20kV and below, and is used for voltage measurement, electric energy metering and relay protection.
JDZX-20 Voltage Transformer
This type of voltage transformer features an epoxy resin fully enclosed cast insulation structure. It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 20kV and below, and is used for voltage measurement, electric energy metering and relay protection.
| Rated Voltage Ratio (kV) | Combination of Accuracy Classes | Rated Output (VA) | Limiting Output (VA) | Rated Insulation Level (kV) |
| (15/√3)/(0.1/√3)/(0.1/3) | 0.5/3P | 30/30 | 100 | 17.5/55/105 |
| (20/√3)/(0.1/√3)/(0.1/3) | 0.5/3P | 30/30 | 24/65/125 |
Note: If the parameters required by the user exceed the range in the above table, please negotiate and confirm with our company.
