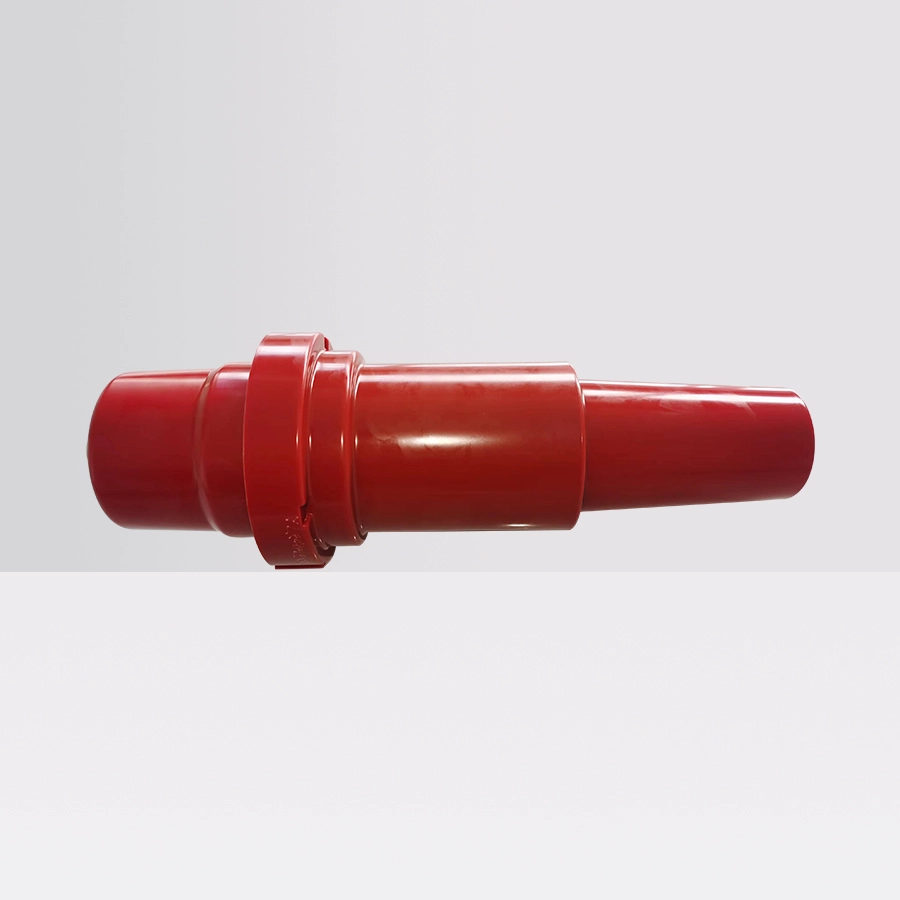

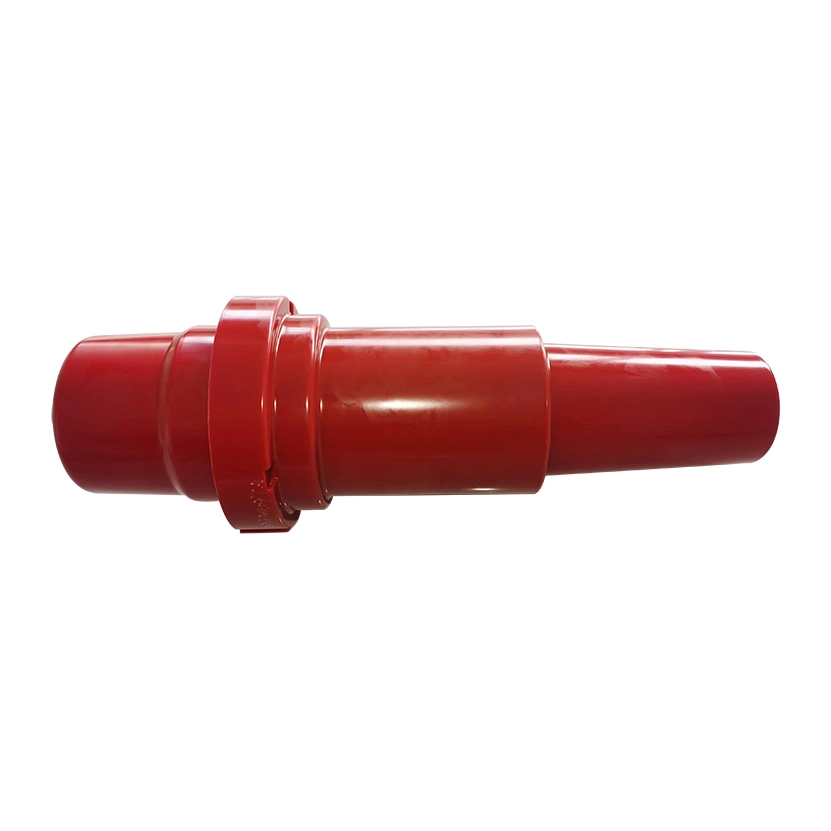

285 Bushing
- Suitable for SF6 gas insulated RMU, one end is sealed in SF6 or high-voltage insulation oil, and the other end can be connected to the front connector.
Suitable for SF6 gas insulated RMU, one end is sealed in SF6 or high-voltage insulation oil, and the other end can be connected to the front connector.
►Characteristics
-The bushing is designed according to the standard EN 50181, the applicable voltage of this product is 12kV, and the applicable current is 630A and 1250A;
-The contact point on the flange surface can be directly grounded or connected to the live display to indicate that the bushing is live;
- Recommended live display device sensor capacity is 16-20pF.
►Main Electrical Performance
| NO. | TESTING ITEM | TESTING STANDARD |
| 1 | Airtightness (Pa-m3/s) | ≤1.0×10-8 |
| 2 | X-ray detection | No bubbles, no impurities |
| 3 | Power frequency withstand voltage | 42kV，1min |
| 4 | Partial discharge | 15kV，≤5pC |

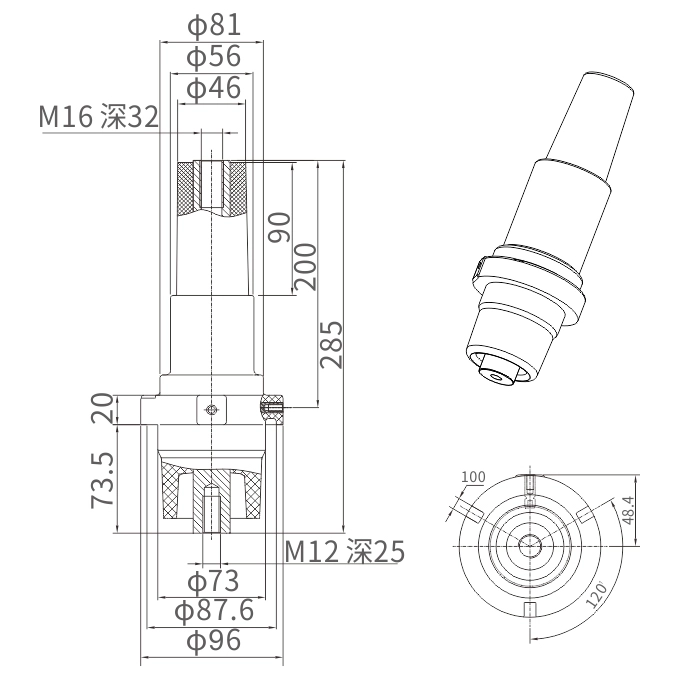

►Dimensions and Figure
