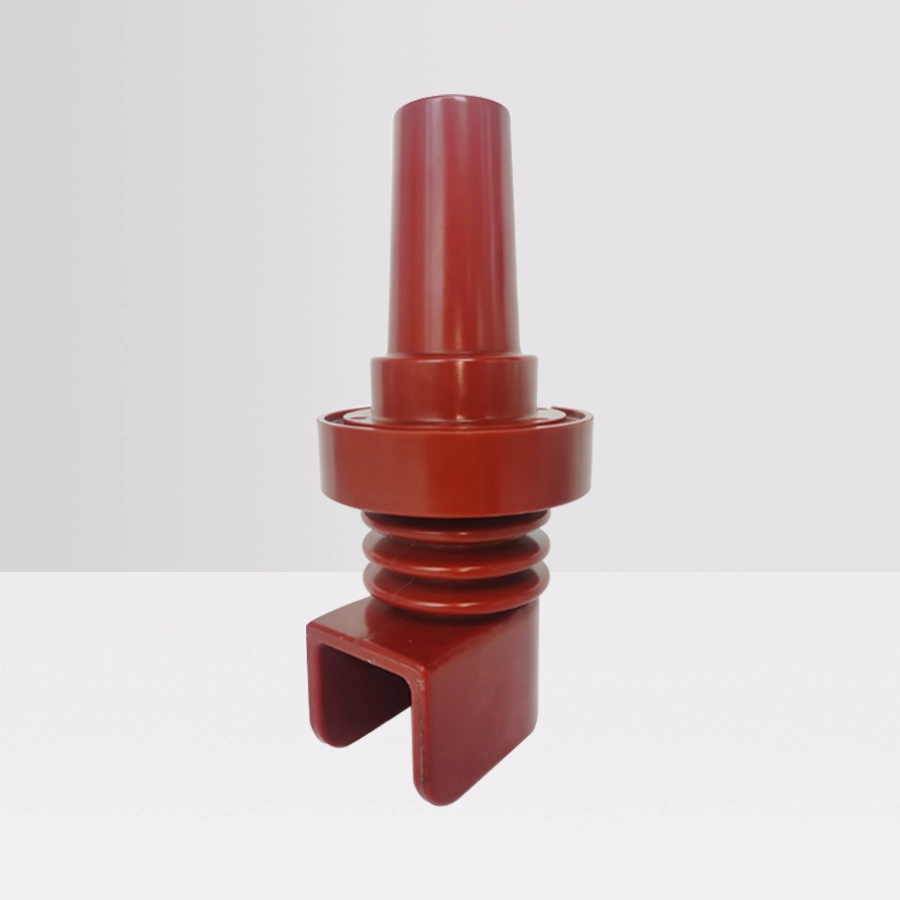

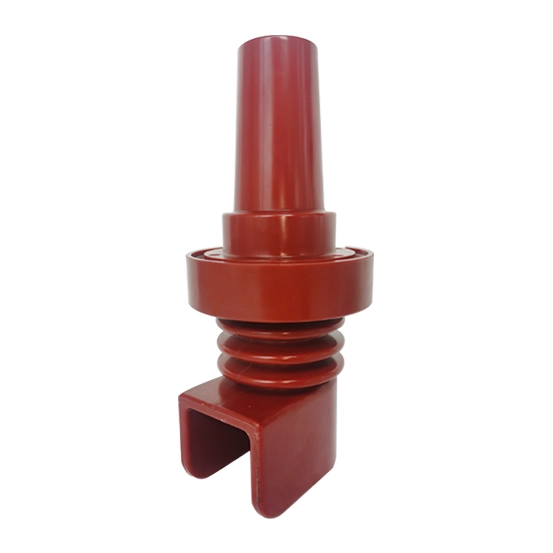

Environmental Protection RMU inlet and outlet bushing (regular model)
- Suitable for environmental protection air insulated RMU, one end is sealed in environmental protection air, and the other end can be connected to the front connector.
Suitable for environmental protection air insulated RMU, one end is sealed in environmental protection air, and the other end can be connected to the front connector.
►Characteristics
-The bushing is designed according to the standard EN 50181, the applicable voltage of this product is 12kV, and the applicable current is 630A;
-The contact point on the flange surface can be directly grounded or connected to the live display to indicate that the bushing is live;
- Recommended live display device sensor capacity is 16-20pF.
►Main Electrical Performance
| NO. | TESTING ITEM | TESTING STANDARD |
| 1 | Airtightness (Pa-m3/s) | ≤1.0×10-8 |
| 2 | X-ray detection | No bubbles, no impurities |
| 3 | Power frequency withstand voltage | 42kV，1min |
| 4 | Partial discharge | 15kV，≤5pC |

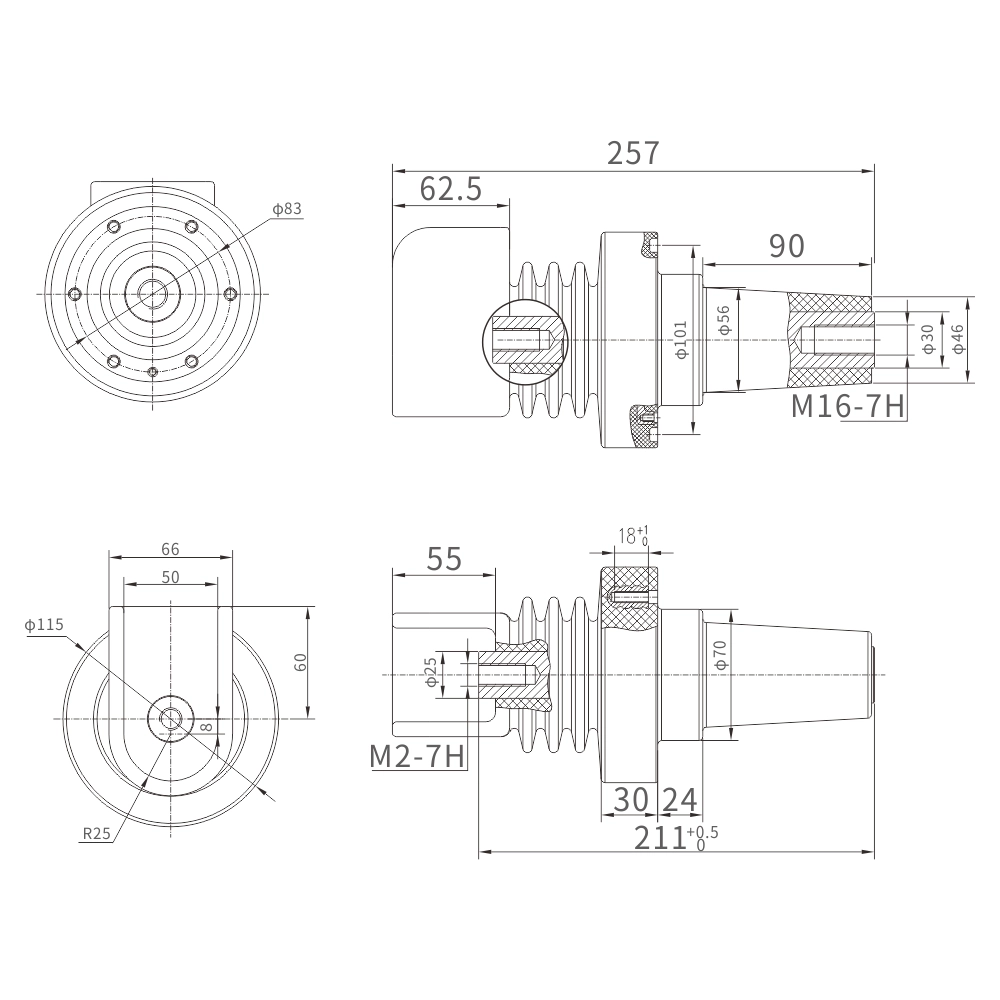

►Dimensions and Figure
Click energy saving and environmental protection cabinet to learn more about the products.
