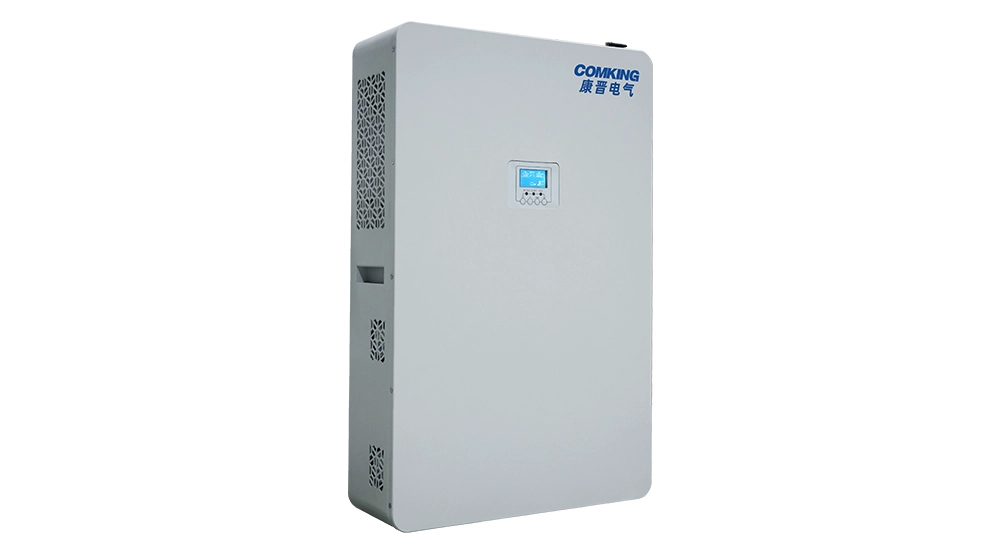

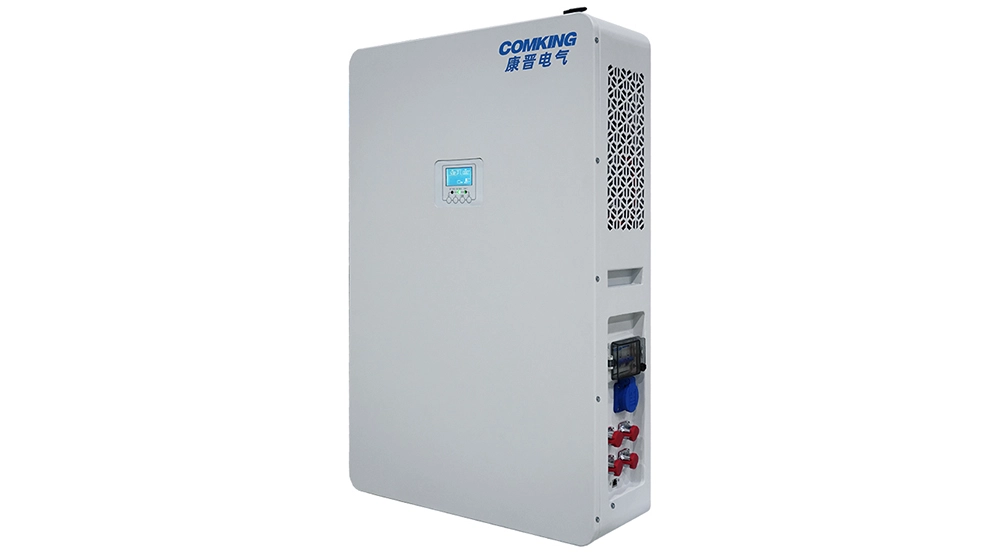

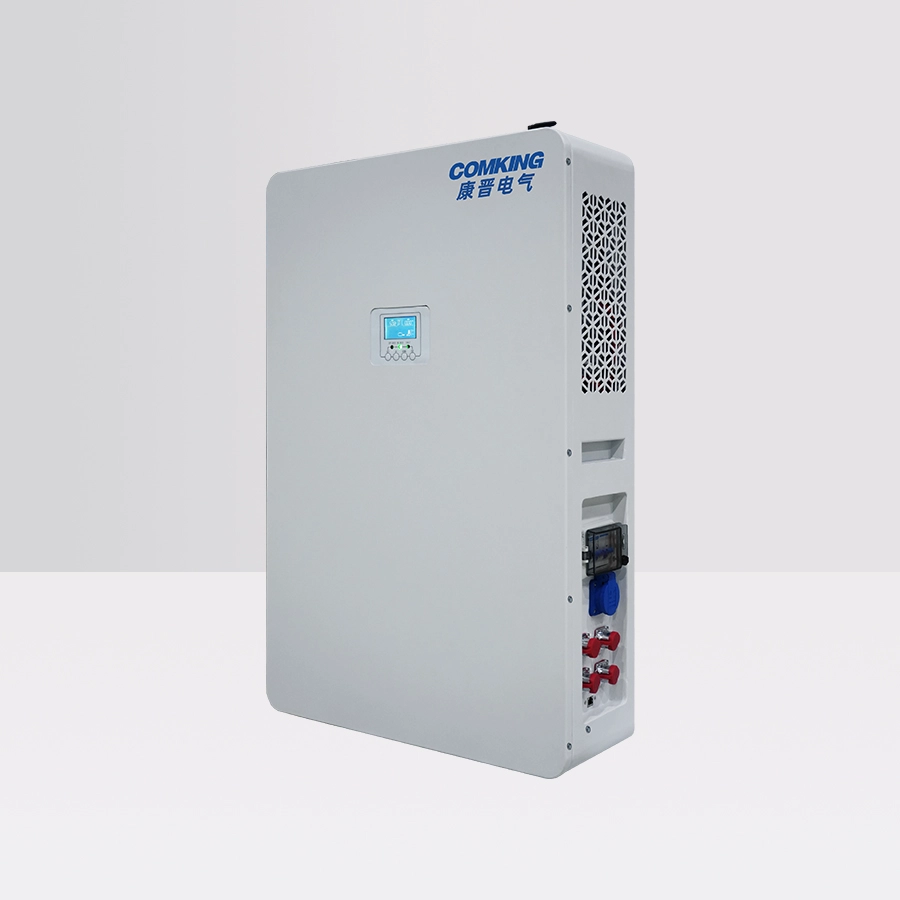

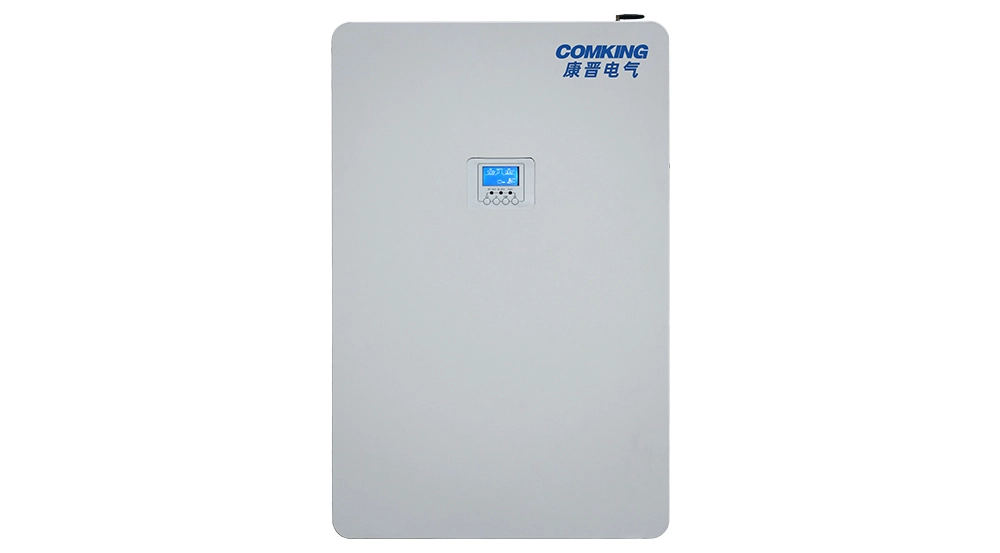

CK-INL1 Wall-mounted Residential Storage Series
- The CK-INL1 Wall-mounted Residential Storage Series uses high-safety LFP cells with capacity covering the commonly used range of 3.8-10kWh.
►Overview
The CK-INL1 Wall-mounted Residential Storage Series uses high-safety LFP cells with capacity covering the commonly used range of 3.8-10kWh. The product integrates a high-efficiency bidirectional inverter, seamlessly connecting PV modules, the grid, and household loads to achieve core functions including PV energy storage, peak shaving and valley filling, and emergency backup power. Its wall-mounted installation saves space, with a sleek design that can be easily deployed in garages or on indoor walls. Real-time monitoring of generation, storage, and consumption, along with mode settings, is available through a user-friendly APP.
►Technical parameter
|
Model (Wall-mounted Series) |
CK-INL1-3.8 |
CK-INL1-5 |
CK-INL1-10 |
CK-INL1-5（plus） |
||
|
Input |
Input Mode |
L+N+PE |
||||
|
Rated Input Voltage |
220/230/240V AC |
|||||
|
Voltage Range |
90-280V AC±3V (Normal) 170-280V AC±3V (UPS) |
|||||
|
Frequency Range |
50Hz/60Hz (adaptive) |
|||||
|
Output |
Rated Power |
Battery Inversion |
1000W |
2000W |
3000W |
5000W |
|
PV Inversion |
4000W |
5000W |
5000W |
8000W |
||
|
Output Voltage |
220/230/240V AC±5% |
|||||
|
Output Frequency |
50/60Hz±0.1% |
|||||
|
Waveform |
Pure Sine Wave |
|||||
|
Transfer Time (configurable) |
Computer equipment 10ms, home appliances 20ms |
|||||
|
Peak Power |
6000W |
10000W |
8000W |
|||
|
Battery |
Rated Voltage |
24V DC |
48V DC |
48V DC |
||
|
Float Charge Voltage (configurable) |
27V DC |
54V DC |
54V DC |
|||
|
PV Input |
PV Charging Mode |
MPPT |
MPPT |
Dual MPPT |
||
|
Max. PV Input Power |
4200W |
6200W |
8000W |
|||
|
MPPT Input Voltage Range |
120~500V DC |
120~500V DC |
120~500V DC |
|||
|
Max. PV Input Voltage |
500VV DC |
500V DC |
500V DC |
|||
|
Max. PV Charging Current |
100A |
100A |
/ |
|||
|
Max. Grid Charging Current |
60A |
60A |
/ |
|||
|
Max. Charging Current |
100A |
100A |
/ |
|||
|
Display |
LCD Interface |
Displays operating mode/load/input/output, etc. |
||||
|
Interface |
RS232 |
Baud rate 2400 |
||||
|
Expansion Slot Communication Interface |
Lithium BMS comm., WiFi, dry contact interfaces, etc. |
|||||
|
Parallel Interface |
No parallel function |
Parallel function |
Parallel function |
|||
|
Parallel Units |
/ |
9 |
6 |
|||
|
Environmental Parameters |
Operating Ambient Temperature |
-10℃ ~50℃ |
||||
|
Protection Rating |
IP20 |
|||||
|
Altitude |
Altitude: ≤1000m; derating needed from 1000m to max 4000m, IEC 62040 compliant |
|||||
|
Noise |
≤50dB |
|||||
|
Product Specifications |
Design Type |
Wall-mounted |
||||
|
Dimensions (W×H×D) mm |
640*480*247 |
900*580*197 |
850*550*279 |
900*580*197 |
||
|
Weight (for reference) kg |
55 |
78 |
115 |
73 |
||
►Product features
Space-Saving
Vertical wall mounting completely frees up floor space, suitable for small apartments/compact spaces.
All-Scenario Power Supply
Supports pure off-grid and on-grid operation with millisecond-level seamless switching.
Intelligent Control
Coordinates PV/grid/load, automatically executes peak-valley arbitrage, and supports remote monitoring and strategy adjustment via APP.
