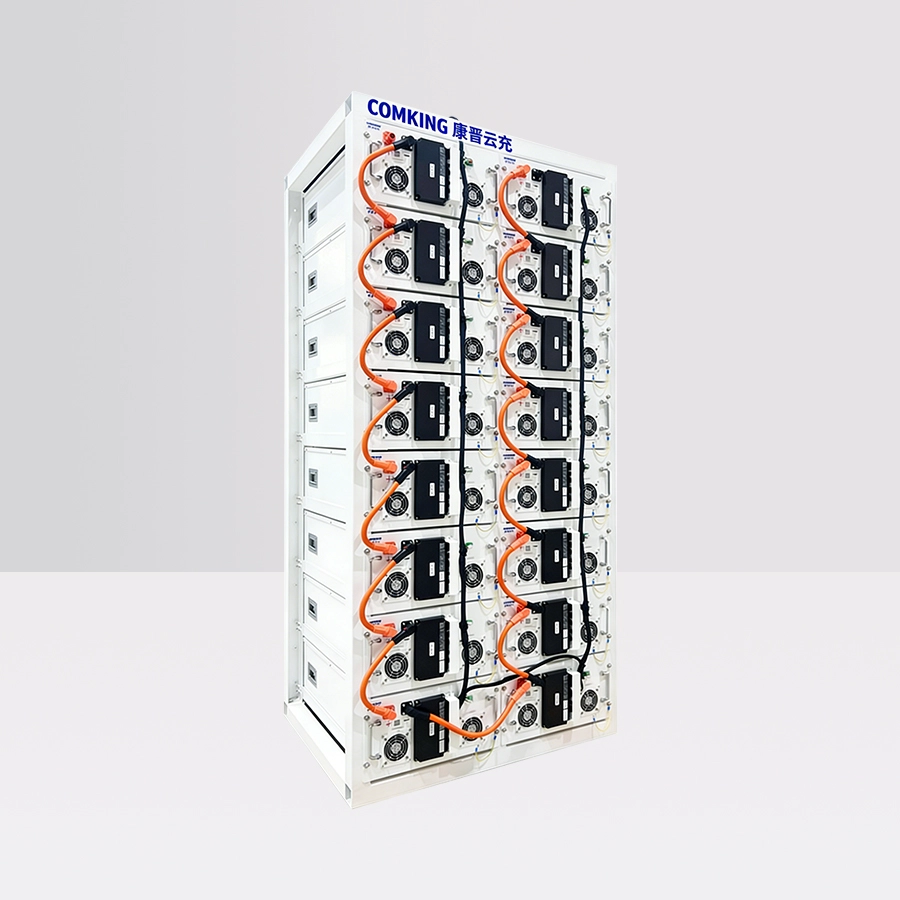

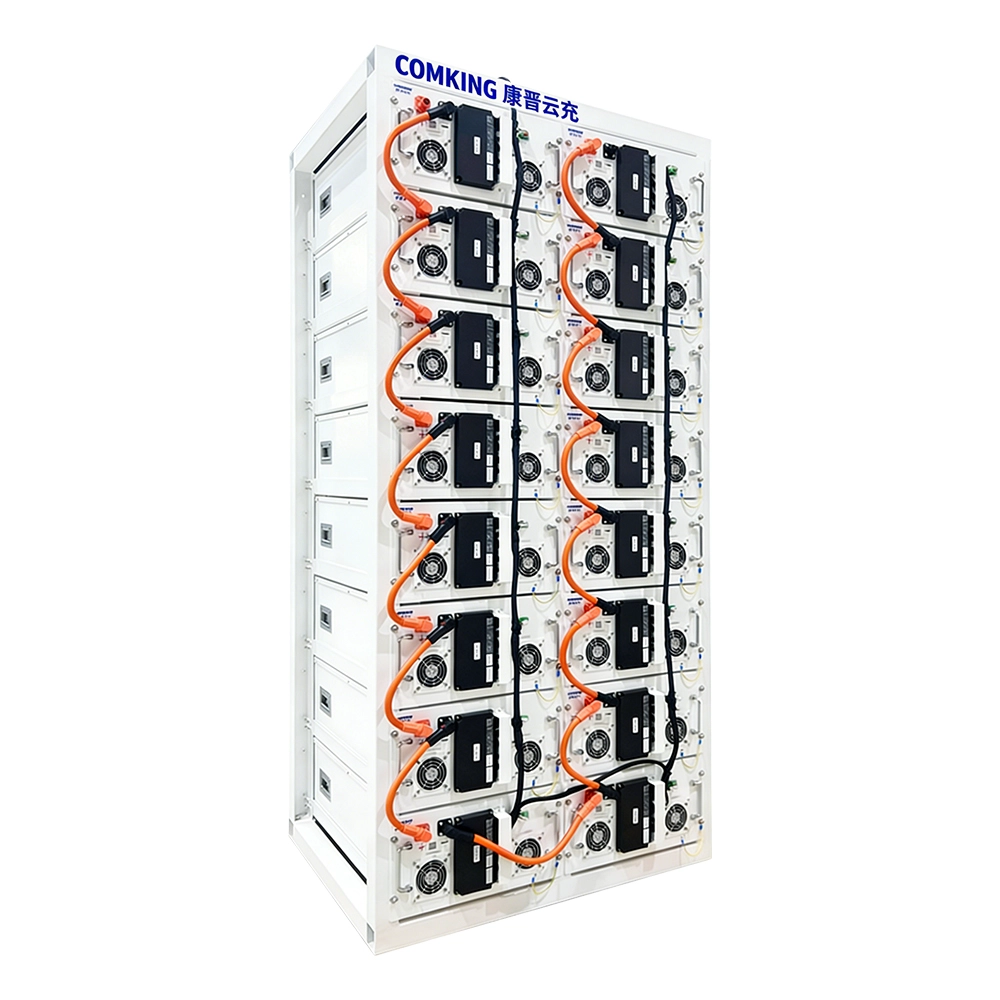

CK-NLRF-200 Standard Cluster (Air-Cooled)
- The CK-NLRF-200 Standard Cluster is an integrated equipment featuring centralized modular design, efficient thermal management, a reliable Battery Management System (BMS), an intelligent O&M platform, and optimized structural solutions.
►Overview
The CK-NLRF-200 Standard Cluster is an integrated equipment featuring centralized modular design, efficient thermal management, a reliable Battery Management System (BMS), an intelligent O&M platform, and optimized structural solutions. With flexible configuration and parallel expansion capabilities, it employs air-cooling technology to precisely control thermal effects, enhance battery longevity, and offers professionally customizable exterior designs. Its standardized grid-connection functionality and scalability effectively address space constraints in commercial/industrial installations. Primarily applicable for power energy storage, backup power systems, peak shaving, frequency regulation, and microgrid scenarios.
►Product features
- Efficient assembly and integrated design enable rapid installation and deployment, with upper and lower circulating conveyor lines for material transfer.
- Modular design allows independent operation, flexible capacity configuration, easy maintenance, customizable combinations based on user requirements, and user-friendly operation.
- Intelligent equipment incorporates a self-developed MES system for real-time monitoring and management of the entire process. Its human-machine collaboration ensures adaptability to diverse application scenarios.
►Technical parameter
| Item | Unit | Specification |
| Standard voltage | V | 716.8 |
| Rated voltage | V | 380 |
| Total harmonic distortion rate of the power grid | % | ≤3% |
| Overload capacity | / | 110%1min |
| Rated energy | kwh | 200 |
| Rated power | kw | 100 |
| Rated current | A | 140 |
| Working voltage intensity | V | 616-817.6 |
| Capacity | KWh | 200.7 |
| Under 0.5C, the cycle number of one charge and one discharge | times | 6000 |
| Comprehensive efficiency | % | ≥94% |
| Protection level | / | IP54 |
| Working temperature range | ℃ | charging:0-50， Discharging:-20-50 |
| Humidity | % | 5%-85% |
| Maximum conversion efficiency | % | 97% |
| Cooling system | / | Air-cooling |
