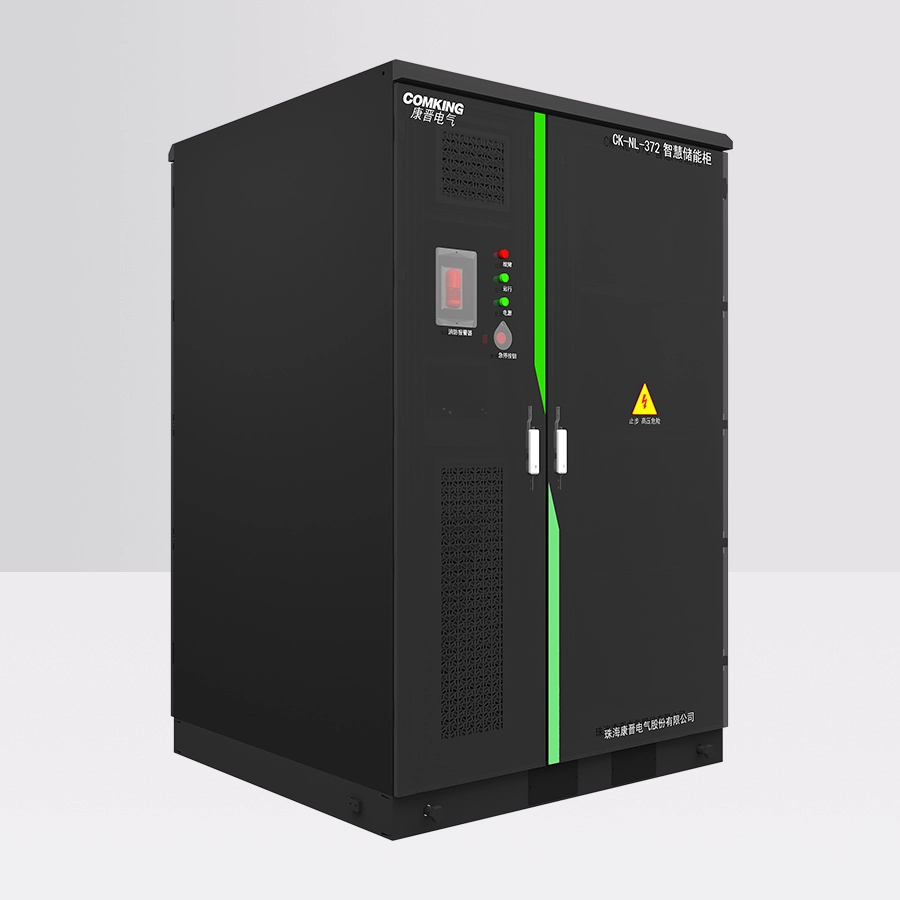

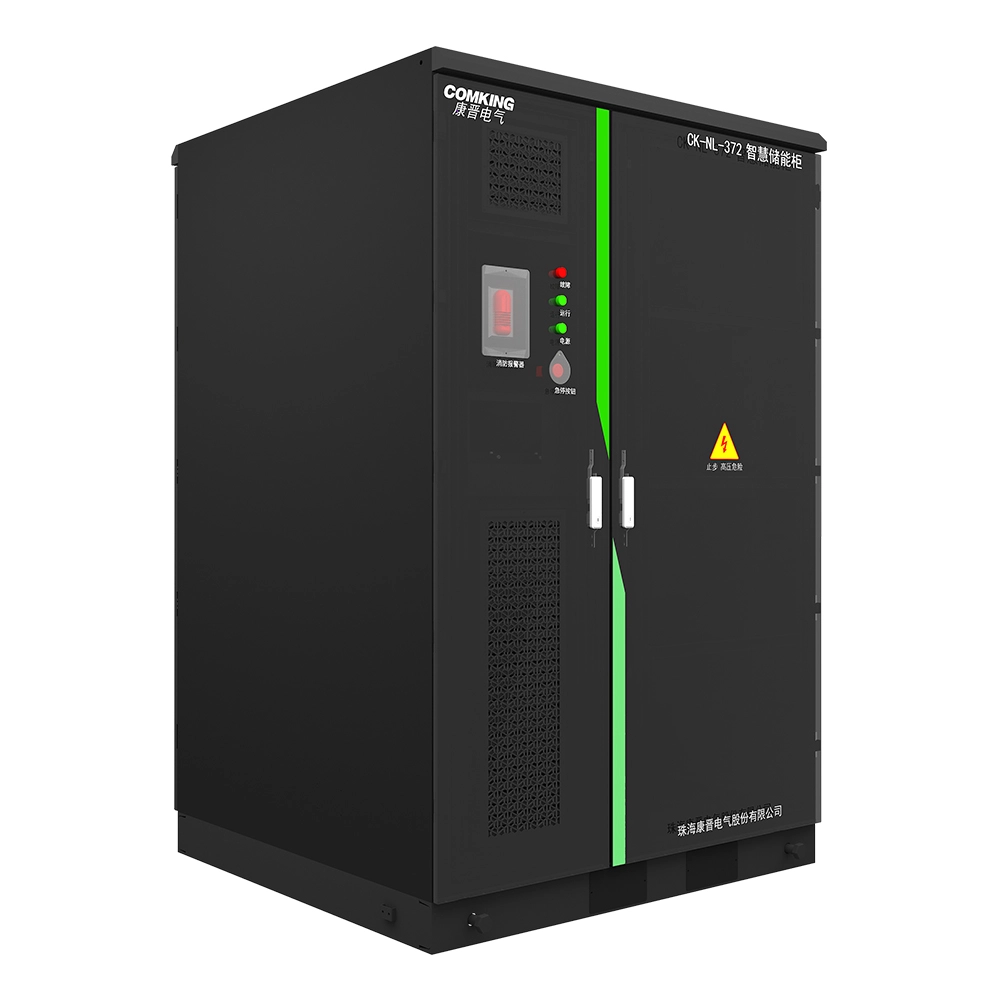

CK-NL-372 Smart Energy Storage Cabinet
- The CK-NL-372 Smart Energy Storage Cabinet is a distributed energy storage system suitable for industrial and commercial scenarios.
►Overview
The CK-NL-372 Smart Energy Storage Cabinet is a distributed energy storage system suitable for industrial and commercial scenarios. It can convert renewable energy sources such as solar and wind power into electrical energy and store it.
►Product features
- Safe and Reliable: Multi-level fire warning system with early-stage monitoring
- Excellent Performance: High-efficiency liquid cooling technology with real-time precise control maintains the battery's optimal working temperature, enhancing overall performance and stability.
- Long Cycle Life: Cell lifespan ≥8000 cycles (80% EOL).
►Technical parameter
| Battery Parameters | |
| Battery type | Lithium Iron Phosphate (LiFePO4) |
| Rated capacity | 280Ah |
| Module model | 1P52S |
| Combination | 1P*52S*8S |
| Rated energy | 372kWh |
| Cluster nominal voltage | DC 1331 V |
| Compliance Standard | GB/T36276-2023、UN38.3 |
| AC side parameters (grid-connected) | |
| Rated Power | 215kW |
| Rated Voltage | AC690V |
| Permissible Grid Voltage Range | 690V(-15%~+10%) |
| Rated Current | 179A |
| Rated Frequency | 50/60Hz |
| Grid Frequency Range | 50/60Hz±5Hz |
| Wiring Method | Three-Phase Three-Wire |
| Grid Current Harmonic Distortion Rate (THDI） | ≤3% (at full load) |
| Power Factor | 0.99cap~0.99ind |
| System Parameters | |
| Dimensions | 1600*1490*2455 |
| Weight | <3000kg |
| System Voltage Range | DC 1164~1500V |
| Protection Rating | IP54 |
| Operating Temperature | -20~50℃ |
| Relative Humidity | 5~95% (non-condensing) |
| Cooling System | Liquid Cooling Unit |
| Fire Protection System | Aerosol/Perfluorohexanone |
| Maximum Efficiency | ≥86% |
| Communication Method | RS485/CAN/Ethernet/Dry Contact |
| Protection | Over-temperature, input/output over-voltage and under-voltage, reverse connection protection, output over-current, etc. |
| Altitude | Derating above 2000m |
