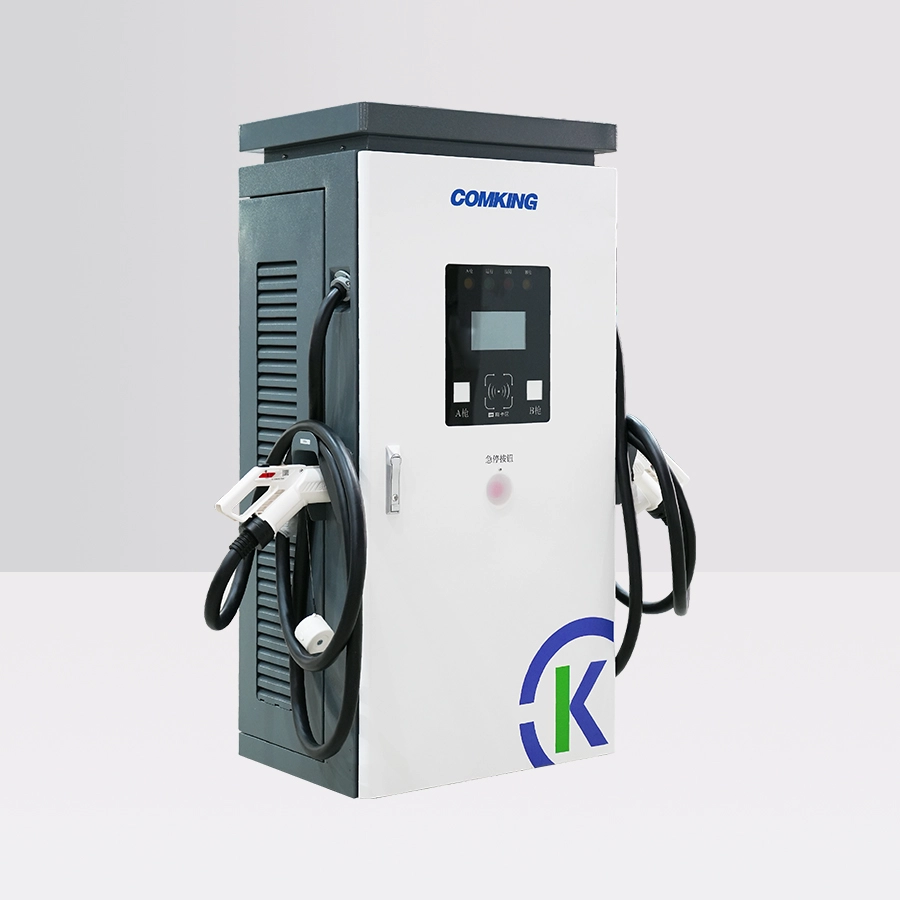

CKEV-DC320/360/400/480 Heavy-Duty Truck Charger
- The 320kW/360kW/400kW/480kW heavy-duty truck Charger is a high-efficiency DC charging device designed specifically for heavy trucks and construction vehicles, with core features covering power configuration, intelligent control, and scenario adaptation.
►Overview
The 320kW/360kW/400kW/480kW heavy-duty truck Charger is a high-efficiency DC charging device designed specifically for heavy trucks and construction vehicles, with core features covering power configuration, intelligent control, and scenario adaptation. Overall efficiency exceeds 95%, supporting dual-gun simultaneous charging with 300kW max single-gun output, intelligent power distribution, and DC 200-1000V wide voltage range compatibility.
►Product features
Five-Tier Smart Billing
Supports peak, shoulder, flat, valley, and deep valley pricing, allowing scheduled charging at the lowest-cost period to reduce costs and avoid peak demand.
Flexible Configuration
Charger supports multi-vendor 40kW module configuration to meet customization needs.
Ultra-Fast Charging
Dual-gun 600A ultra-fast charging, 400kW super power.
Strong Compatibility
Excellent compatibility with 320kW/360kW/400kW/480kW station types; BMS auxiliary power 12V/24V freely switchable.
Stable and Reliable
Module potting process, control power protection, operational data backup. The 320/360/400/480kW Chargers in this series have all obtained CCC certification reports
►Technical parameter
|
Product Model |
CKEV-DC320 |
CKEV-DC360 |
CKEV-DC400 |
CKEV-DC480 |
|
AC Input Voltage |
AC380±15% （Three-Phase） |
|||
|
AC Input Frequency |
45~55Hz |
|||
|
DC Output Voltage Range |
DC200-1000V |
|||
|
Output Current |
300A |
|||
|
Rated Output Power |
320kW |
360kW |
400kW |
480kW |
|
Power Distribution |
Each gun port delivers up to 300kW in single-gun mode, with dual-gun parallel charging capability. |
|||
|
Display |
7-inch LCD Touch Screen |
|||
|
Number of Charging Guns |
Dual Gun, 7.5m (Customizable) |
|||
|
Charging Activation |
Card / QR Scan / VIN |
|||
|
Card Reader |
ISO14443 Type A |
|||
|
Communication Interface |
4G All-Network Access, Ethernet |
|||
|
Operating Ambient Temperature |
-20℃~+50℃ |
|||
|
Cooling Method |
Smart Air Cooling |
|||
|
Standby Power Consumption |
≤30W |
|||
|
Efficiency |
≥ 94% (above half load) |
|||
|
Safety Features |
Overvoltage, Undervoltage, Overload, Overcurrent, Short Circuit, Grounding, Over-temperature, Lightning, and Emergency Stop Protection |
|||
|
Relative Humidity |
5~90%RH, Non-condensing |
|||
|
Altitude |
≤2000 m |
|||
|
Protection Rating |
IP54 |
|||
|
Noise |
＜65dB |
|||
|
Enclosure Material |
Sheet Metal Powder-Coated Enclosure |
|||
Click 320/360/400/480kW charging pile suppliers in China to learn more.
