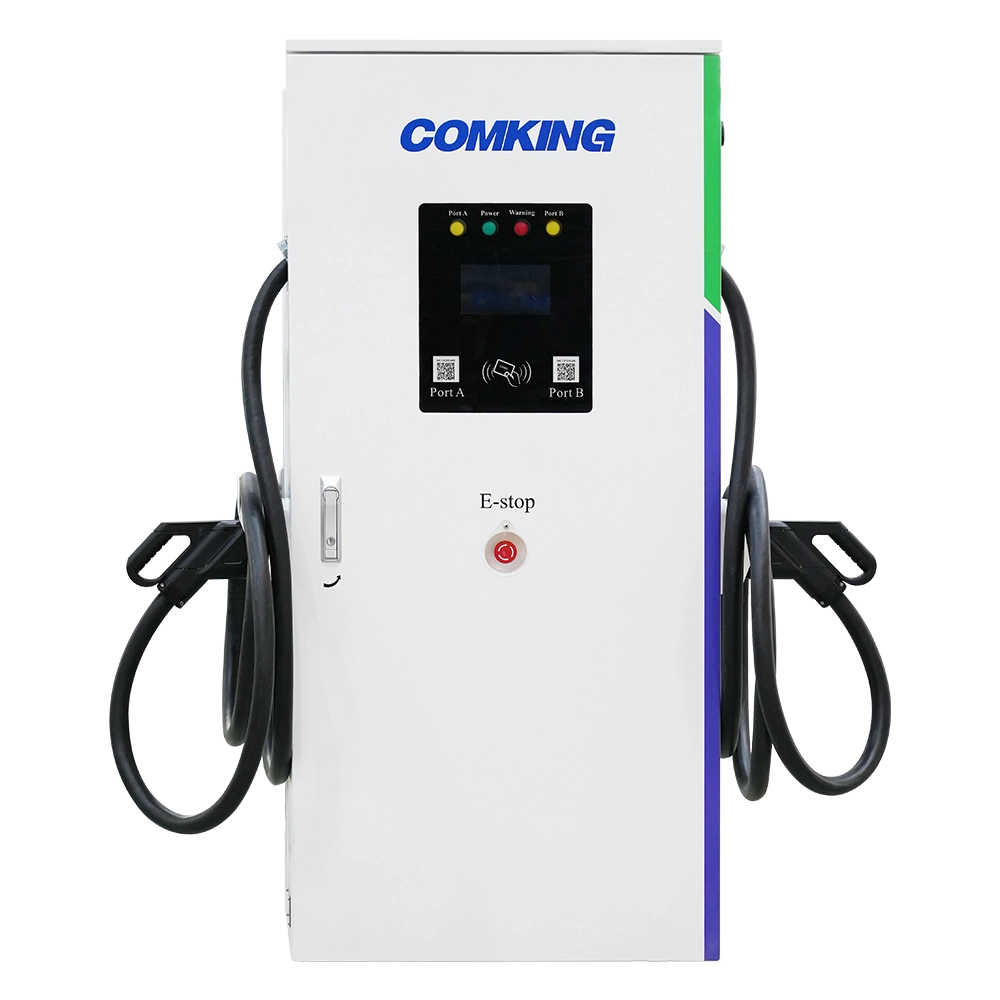

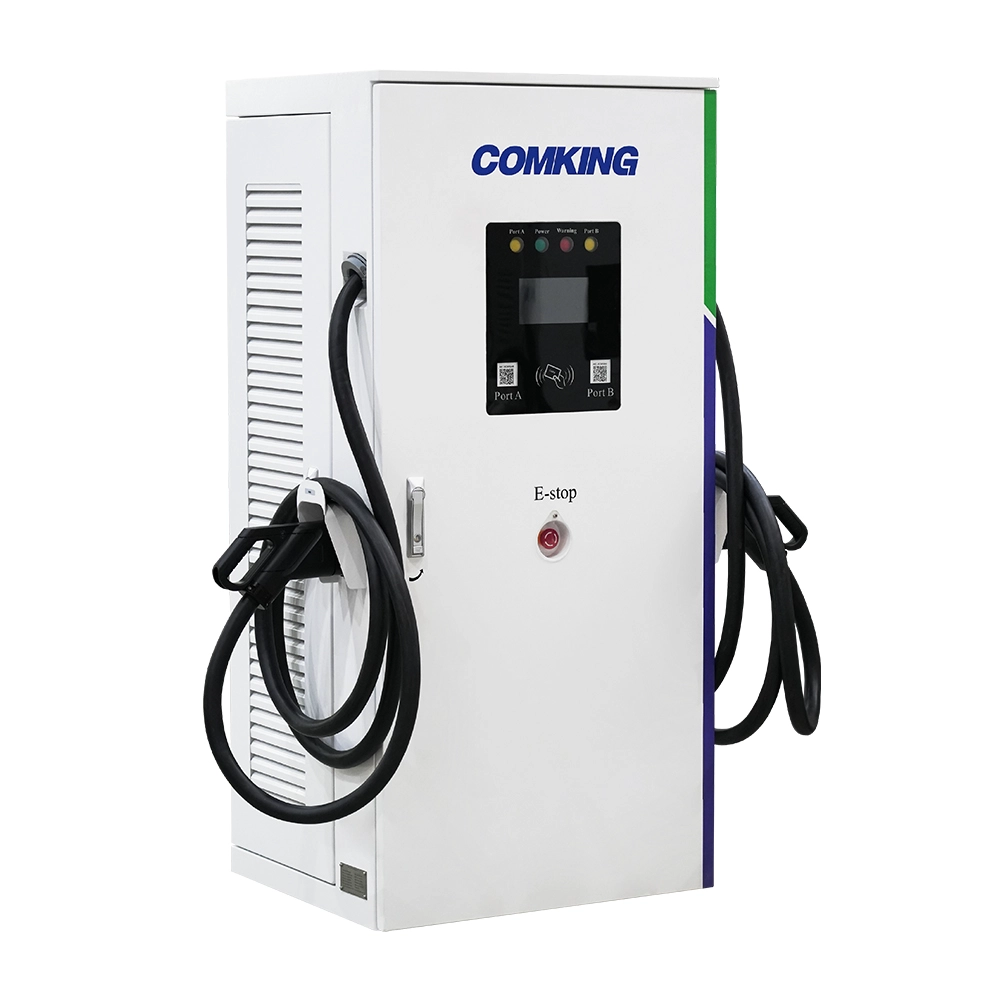

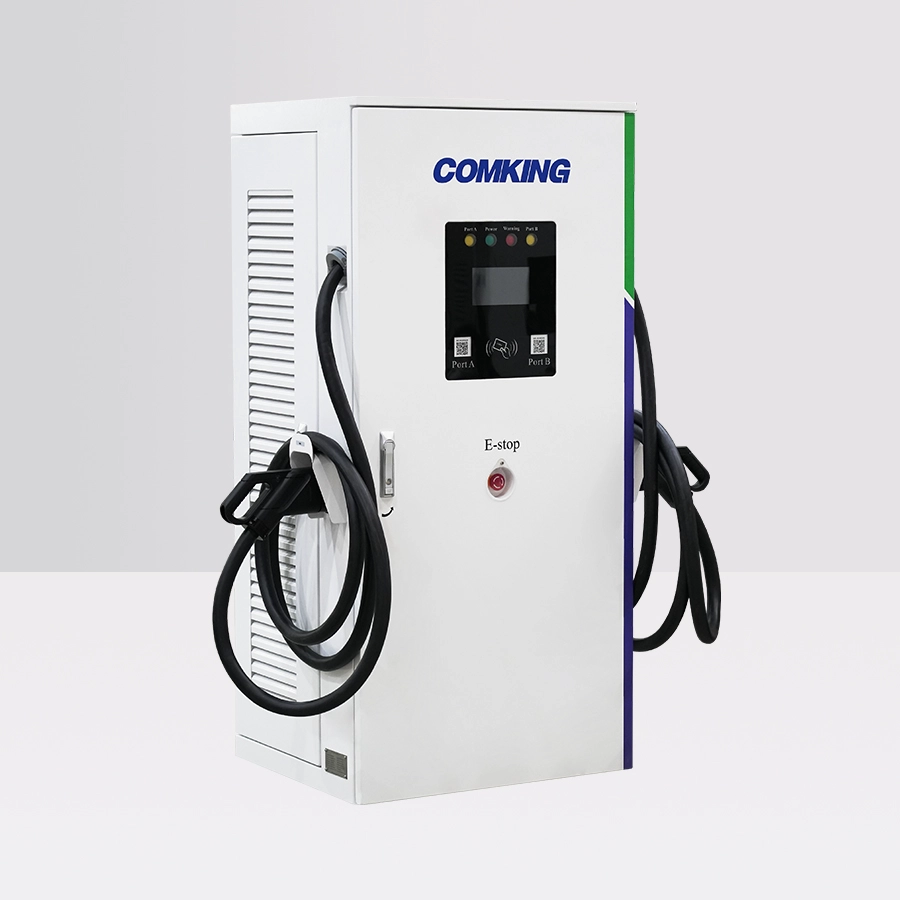

CKEV-DC60/80/90/120/150/160/180 (EU) DC Charger
- The 60/80/90/120/150/160/180kW (EU) DC Charger integrates power conversion, charging control, HMI control, communication, and billing/metering in one unit with IP54 protection rating, supporting 24/7 indoor/outdoor safe operation with flexible single/dual-gun options.
►Overview
The 60/80/90/120/150/160/180kW (EU) DC Charger integrates power conversion, charging control, HMI control, communication, and billing/metering in one unit with IP54 protection rating, supporting 24/7 indoor/outdoor safe operation with flexible single/dual-gun options. The power conversion unit follows modular design principles with configurable output, supporting mainstream charging and communication protocols, compatible with 99% of EV models, delivering a fast and stable charging experience.
►Product features
Flexible Configuration
Charger supports 30kW and 40kW charging modules with multiple power configuration options to meet customization needs.
Safety Assurance
Multiple protection layers with IP54 overall protection rating. The above series have all obtained CCC certification reports.
Strong Compatibility
Excellent compatibility, supporting multiple vehicle models.
Stable and Reliable
Module potting process, control power protection, operational data backup.
►Technical parameter
|
Product Name |
60/80/90/120/150/160/180kW（EU）DC Charger |
|
Product Model |
CKEV-DC60/80/90/120/150/160/180(EU) |
|
AC Input Voltage |
400V±15%（Three-phase） |
|
AC Input Frequency |
45~55Hz |
|
DC Output Voltage Range |
DC200-1000V |
|
Output Current |
250A（max） |
|
Rated Output Power |
60/80/90/120/150/160/180kW |
|
Power Distribution |
Supports Dual-Gun Power Distribution |
|
Display |
7-inch LCD Touch Screen |
|
Charging Interface |
CCS2, compliant with European standard IEC 62196 |
|
Number of Charging Guns |
Dual gun, 5m (customizable) |
|
Charging Activation |
Local Card Swipe or QR Code Activation |
|
Card Reader |
ISO14443 Type A |
|
Communication Interface |
4G All-Network Access, Ethernet |
|
Operating Ambient Temperature |
-20℃~+50℃ |
|
Cooling Method |
Smart Air Cooling |
|
Standby Power Consumption |
≤30W |
|
Efficiency |
≥ 94% (above half load) |
|
Safety Features |
Overvoltage, Undervoltage, Overload, Overcurrent, Short Circuit, Grounding, Over-temperature, Lightning, and Emergency Stop Protection |
|
Relative Humidity |
5~90%RH, Non-condensing |
|
Altitude |
≤2000 m |
|
Protection Rating |
IP54 |
|
Noise |
＜65dB |
|
Enclosure Material |
Sheet Metal Powder-Coated Enclosure |
Click 60/80/90/120/150/160/180kW Charging Pile Wholesales to learn more.
