►Overview

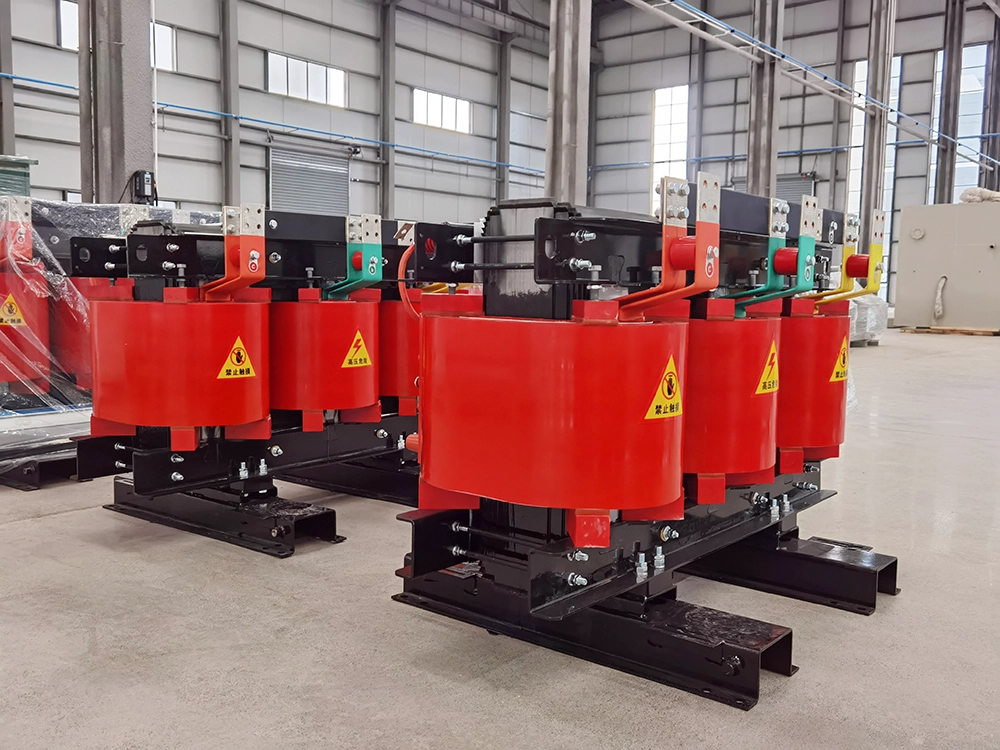

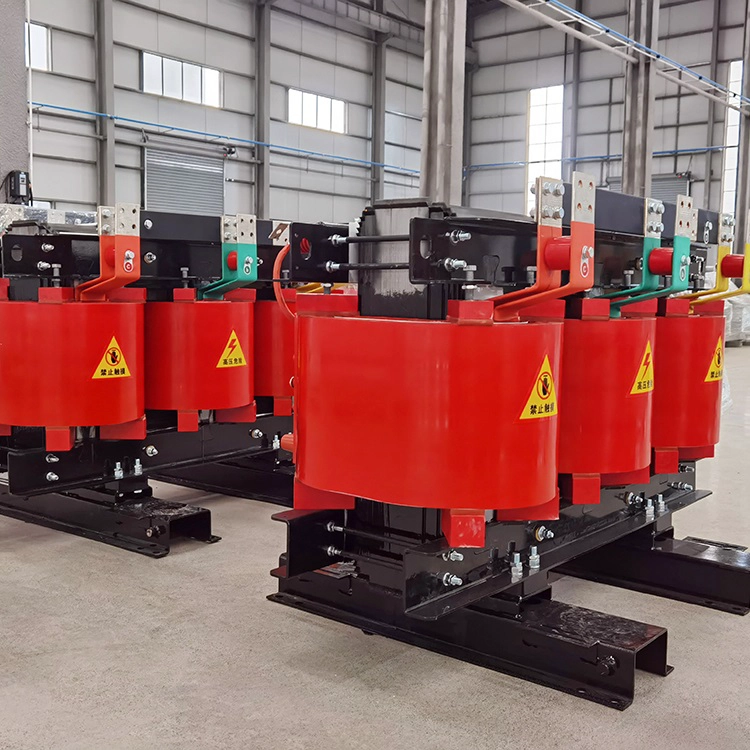

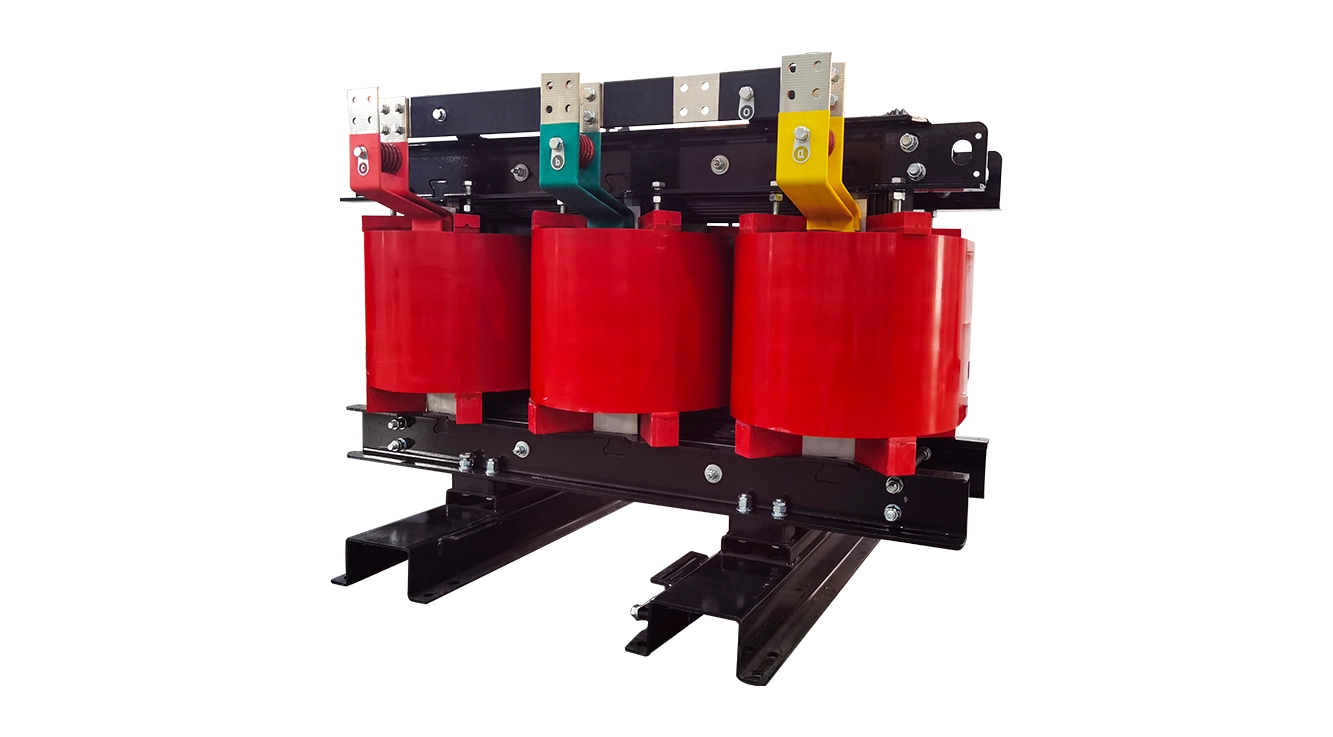

SC(B) series epoxy cast dry-type transformers are made of electrically oriented silicon steel or amorphous alloy as the core material, and the coils are cast with epoxy resin. They have good fireproof and moisture-proof properties, no pollution, and are flame retardant, self-extinguishing fire prevention. It is a product for urban power grid transformation, especially suitable for urban power grids, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, underground railways, underground power stations, laboratories, bus stations, docks, airports, combined substations and other important places that require flame retardant, explosion-proof and moisture-proof.

►Product series

Note: If you need other types of 10-35kV dry-type distribution transformers, please contact our transformer team for specific technical parameters and requirements.

►Normal use conditions

Altitude: ≤1000m；

Ambient temperature: Ultra high temperature 40℃；

Ultra-low temperature: -25℃ (Outdoor dry-type transformer)；

Ultra-low temperature: -5℃ (Indoor dry-type transformer)；

Ultra-high monthly average temperature: 30℃；

Ultra-high average annual temperature 20℃；

Power supply voltage waveform: should be approximately a sine wave.

Note: If the use condition is more special than the above-mentioned conditions, please contact our transformer team for specific technical parameters and requirements.

►Product performance advantages

•Low loss and low noise.

•No pollution, maintenance-free, easy to install and low overall operating cost.

•Small size and light weight.

•High mechanical strength, strong resistance to temperature changes and short circuit resistance.

•Moisture-proof and corrosion-resistant, it can operate in high humidity.

•Economical installation, can be installed in load centers without special foundation.

•Feasibility, reliability, security, stability.

•It has good insulation performance, small partial discharge and strong lightning impulse resistance.

•It has good fire resistance and is refractory to flames and self-extinguishing.

•Suitable for urban substations with dense population and narrow space.

►Structural Features

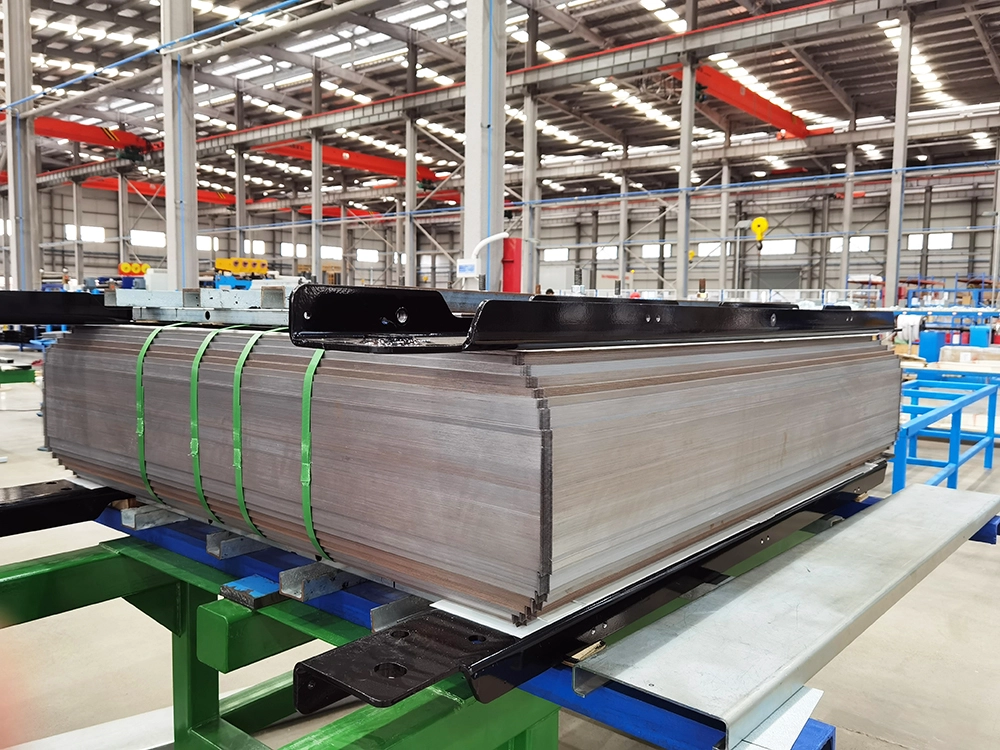

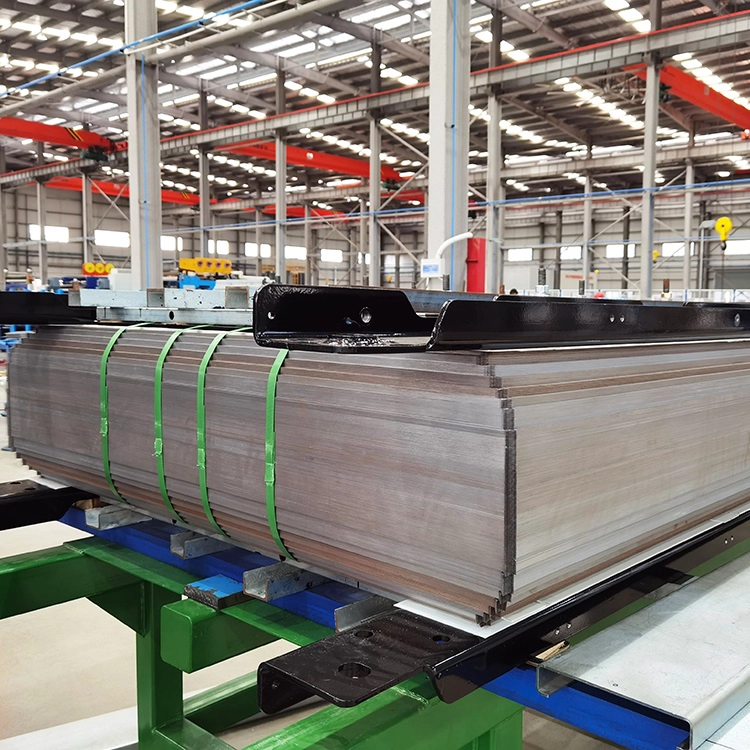

1.CORE：A three-phase three-column laminated core is used, and the three columns are all covered with windings. The left and right magnetic flux phases are different, the core magnetic circuit is unbalanced, and the middle column magnetic circuit is shorter, which reduces the no-load current.

2.WINDING：It is made of H-class film-coated non-woven flat copper wire and epoxy resin insulating material, which is moisture-proof and corrosion-resistant, has small partial discharge, has sufficient dynamic and thermal stability, and will not shift during operation and transportation.

3.CLAMP：Frame structure, the clamping structure bears the clamping force, the gravity of the lifting body and the mechanical force generated when the transformer is short-circuited, ensuring the electromagnetic performance of the cold-rolled electrical steel sheet.
