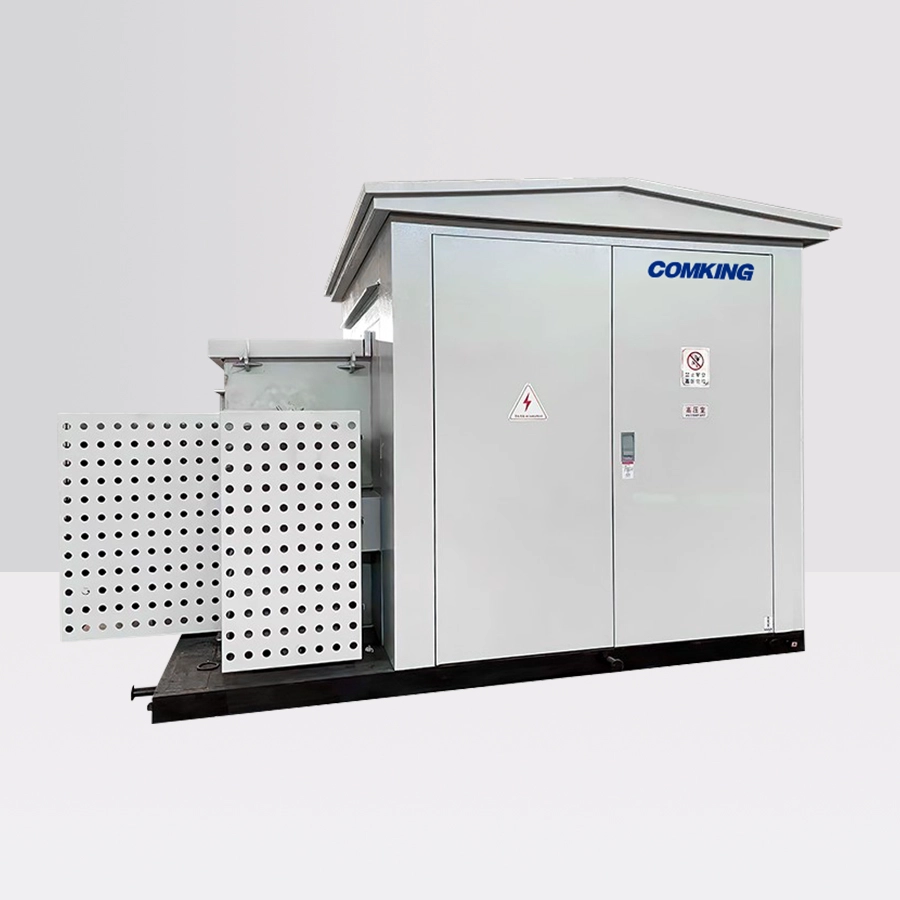

European-type Mobile Substation
- 10kV European-type mobile substation is a type of prefabricated kiosk type substation, which is basically the same as the principle of traditional civil engineering electrical rooms. It is to input high-voltage power through high-voltage switchgear, reduce voltage through transformers, and then distribute electricity through low-voltage switchgear.
►Overview
10kV European-type mobile substation is a type of prefabricated kiosk type substation, which is basically the same as the principle of traditional civil engineering electrical rooms. It is to input high-voltage power through high-voltage switchgear, reduce voltage through transformers, and then distribute electricity through low-voltage switchgear. High voltage equipment, transformers, and low-voltage equipment are a complete set of distribution devices installed in steel structure kiosk according to scientific arrangement methods. Adopting a kiosk shell structure, it has strong mobility, convenient installation, and can be used outdoors.
►Technical Parameter
| Project Name | Unit | Parameter | |
| High pressure part | Rated frequency | Hz | 50 |
| Rated voltage | kV | 6、10、35 | |
| Maximum working voltage | kV | 6.9、11.5、40.5 | |
| Power frequency withstand voltage, grounding and interphase/isolation fracture | kV | 32/36、42/48、95/118 | |
| Lightning impulse voltage, grounding and interphase/isolation fracture | kV | 60/70、75/85、185/215 | |
| Rated current | A | 400、630 | |
| Rated short-term withstand current | kA | 12.5(2s)、16(2s)、20(2s) | |
| Rated peak withstand current | kA | 31.5、40、50 | |
| Low pressure part | Rated voltage | V | 380、220 |
| Rated current of main circuit | A | 100-3200 | |
| Rated short-term withstand current | kA | 15、30、50 | |
| Rated peak withstand current | kA | 30、63、110 | |
| Branch current | A | 10-800 | |
| Number of branch circuits | Road | 1-12 | |
| Compensation capacity | kVar | 0-360 | |
| Transformer part | Rated capacity | KVA | 50-2000 |
| Short-circuit impedance | % | 4、6 | |
| Tap range | - | ±2*2.5%、±5% | |
| Connecting group | - | YynD、Dyn11 | |
►Product Features
1.Convenient installation：The internal equipment installation and commissioning of the European-type mobile substation is completed in the factory before delivery, the site installation only need to fix the substation on the pre made base, connect the inlet and outlet cables.
2.High mobility：The European mobile substation is suitable for temporary electrical engineering, and can be installed in another place for continued use, won't waste resources.
3.Low cost of construction：European-type mobile substations save about 50% in cost compared to civil engineering rooms, shorten the construction period by half, and do not require personnel on duty during the operation phase.
4.Low on-site construction volume：The European-type mobile substation does not require a separate distribution room, only a simple base needs to be built, greatly reducing the construction amount.
