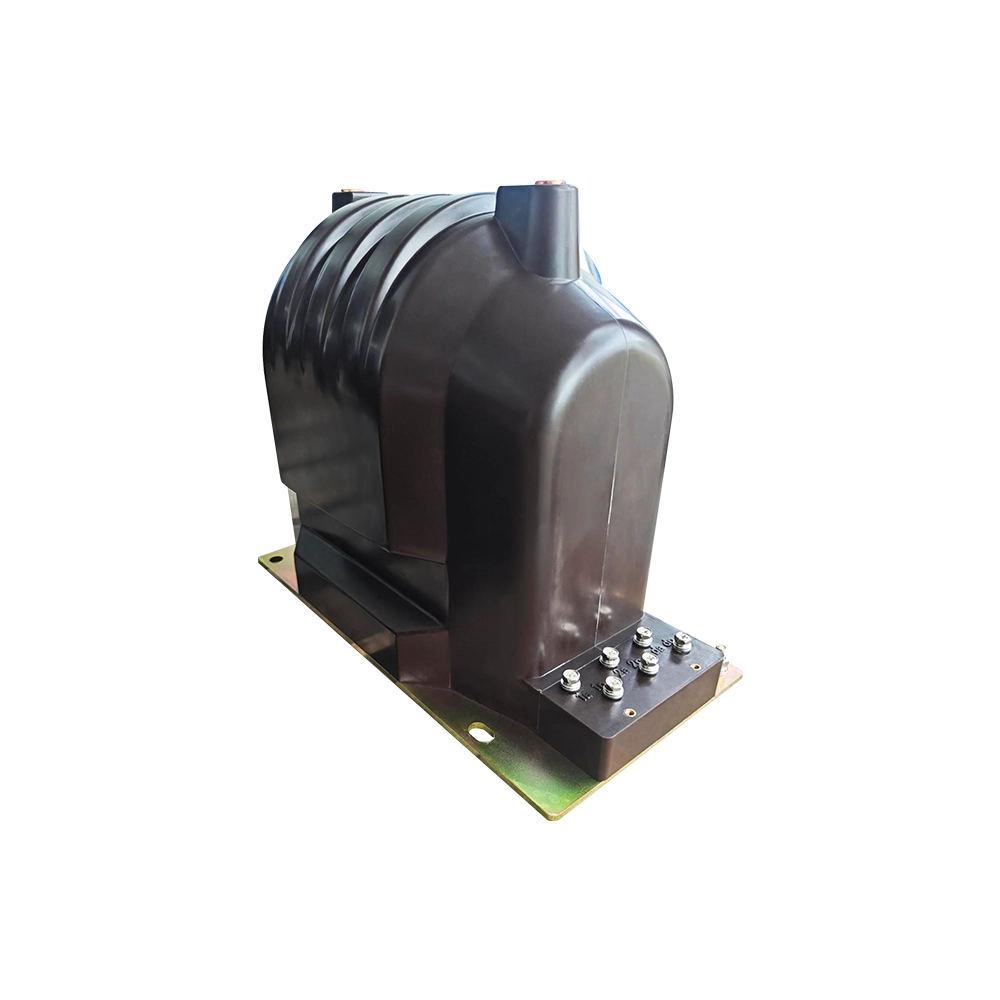

JDZ10-10C Potential Transformer
- It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 10kV and below, and is used for voltage measurement, electric energy metering and relay protection.
JDZ10-10C Potential Transformer

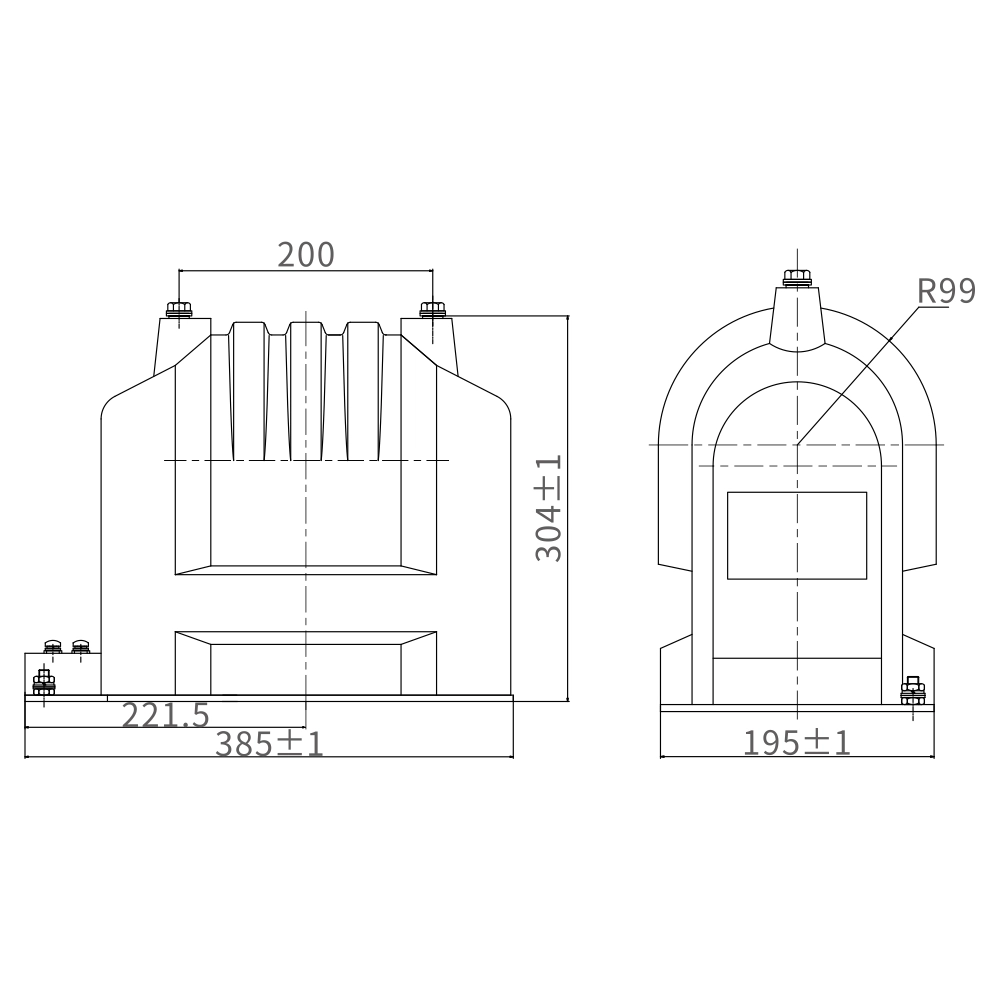

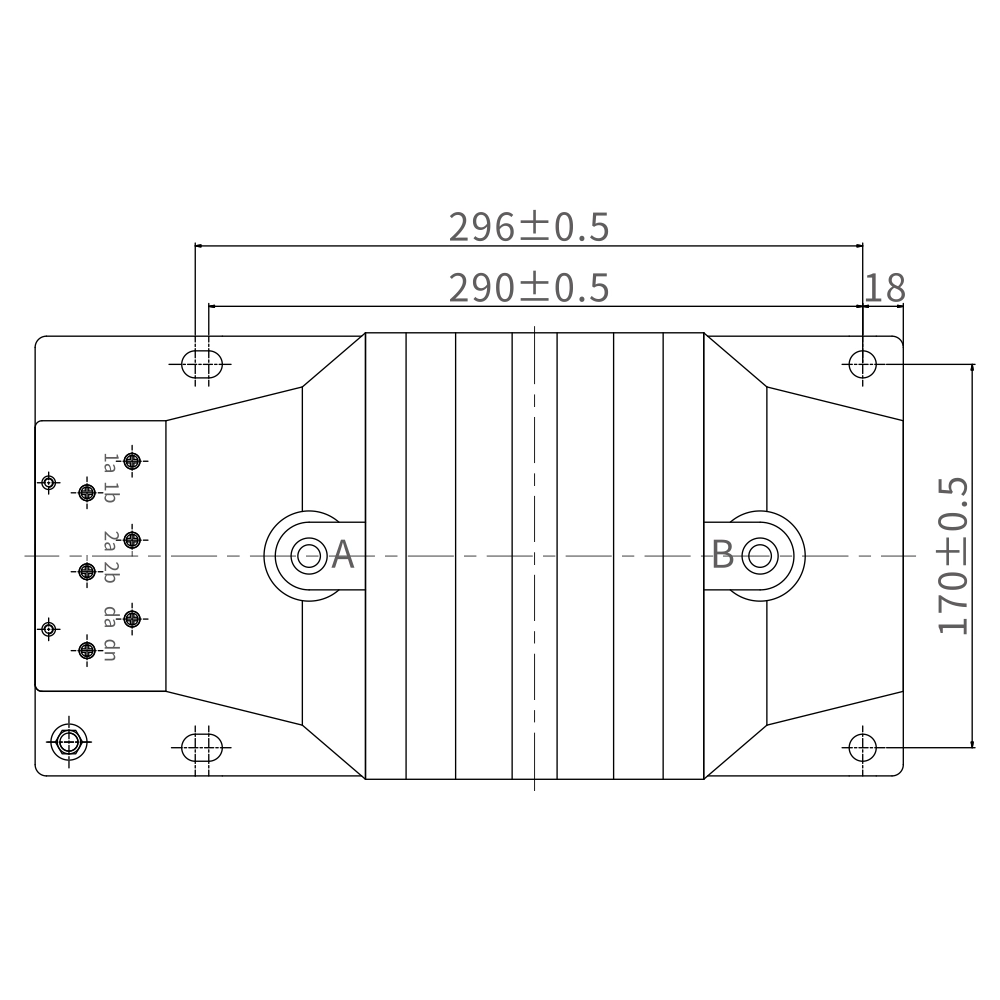

This type of potential transformer features an epoxy resin fully enclosed cast insulation structure. It is applicable to AC power systems with a rated frequency of 50 or 60Hz and a rated voltage of 10kV and below, and is used for voltage measurement, electric energy metering and relay protection. The product is compact in size, light in weight, and available with a variety of mounting dimensions.
| Rated Voltage Ratio (kV) | Rated Output (VA) | Limiting Output (VA) | Rated Insulation Level (kV) | |||
| 0.2 | 0.5 | 3 | 3P | |||
| 6/0.1/0.22 | 30 | 1000 | 1200 | 7.2/32/60 | ||
| 10/0.1/0.22 | 30 | 1000 | 1200 | 12/42/75 | ||
| (6/√3)/(0.1/√3)/(0.1/√3)/(0.1/3) | 30 | 30 | 100 | 100 | 7.2/32/60 | |
| (10/√3)/(0.1/√3)/(0.1/√3)/(0.1/3) | 30 | 30 | 50 | 100 | 12/42/75 | |
Note: If the parameters required by the user exceed the range in the above table, please negotiate and confirm with our company.
