Essential Power Components – Voltage Transformers, Current Transformers, and Shielded Connectors for Reliable Distribution Networks
Behind every stable medium‑voltage distribution system lies a set of critical components that ensure accurate measurement, protection, and secure cable termination. As grid infrastructure ages and new installations demand higher density and reliability, the performance of instrument transformers and cable accessories has become a focal point for engineers and procurement specialists alike.

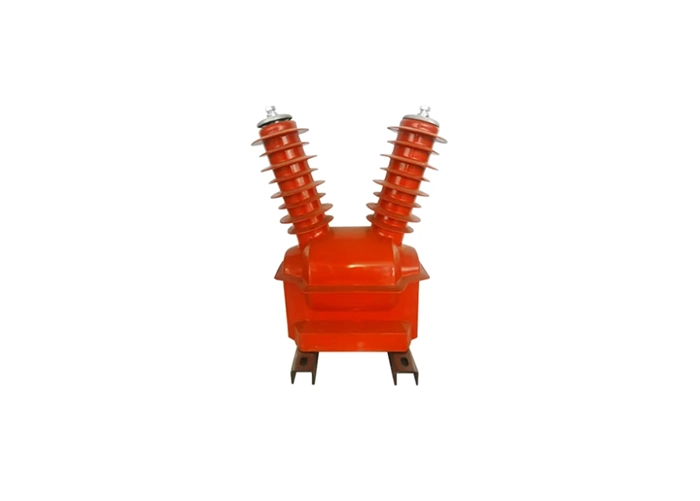

For outdoor installations – such as substation yards, pole‑mounted equipment, or renewable generation sites – the choice of a dependable Outdoor Voltage transformer manufacturer directly affects the quality of voltage signals fed to meters, relays, and control systems. Outdoor voltage transformers must withstand severe weather conditions, including temperature extremes, humidity, and ultraviolet exposure, while maintaining rated accuracy over decades of service. Modern designs often employ dry‑type or cast‑resin insulation to eliminate oil leaks and reduce maintenance, with primary voltage ratings commonly available from 3kV up to 36kV. Compliance with IEC 61869 or IEEE C57.13 is typically specified to ensure interchangeability and proven accuracy classes (e.g., 0.2, 0.5, 3P).
Inside switchgear panels and compact distribution cabinets, space is at a premium, which drives the demand for a Small size Electricity Current transformer. These miniature current transformers offer the same core functionality – stepping down primary currents to standardised 5A or 1A secondary signals – but in a significantly reduced physical footprint. They are often designed with split‑core or fixed‑core configurations, and some models feature epoxy encapsulation for enhanced dielectric strength and moisture resistance. Despite their compact dimensions, they can cover primary currents from tens to several thousand amperes, with accuracy classes suitable for both revenue metering and protection relaying. Their small size also facilitates retrofitting into existing panels without extensive busbar modifications.
A reliable and safe cable connection is equally vital in medium‑voltage networks, particularly for underground feeder circuits and ring‑main units. The Fully Insulated 15kV Shielded Front Connector is a factory‑assembled cable accessory that provides a fully screened, touch‑safe termination for polymeric insulated cables. Rated for 15kV systems (typically up to 24kV in some standards), this connector features a conductive shield layer that ensures electrical continuity with the switchgear’s outer screen, eliminating surface discharge risks. Its push‑on design simplifies field installation, while the fully insulated housing protects against accidental contact and environmental ingress. Such connectors are widely used in conjunction with load break switches, vacuum circuit breakers, and transformer bushings, offering a modular and separable interface that facilitates maintenance and future reconfiguration.
Zhuhai Comking Electric Co., Ltd. supplies these three categories of power components, with products that undergo routine accuracy tests, partial discharge measurements, and impulse voltage withstand tests in accordance with relevant international standards. The company offers outdoor voltage transformers in both inductive and capacitive types, small‑sized current transformers with multiple mounting options, and 15kV shielded front connectors with mating interfaces compatible with common bushing patterns (e.g., 200A or 600A). All components are designed to operate within specified temperature ranges and humidity conditions, and optional accessories such as test points, parking stands, and surge arresters are available to complete the installation.
As distribution networks become more compact and digitally monitored, the reliability of these fundamental components directly influences system uptime and measurement integrity. Selecting proven designs with robust insulation, stable ratio characteristics, and secure terminations remains a prudent strategy for utilities, industrial plants, and EPC contractors aiming to build durable and maintainable medium‑voltage infrastructure.
