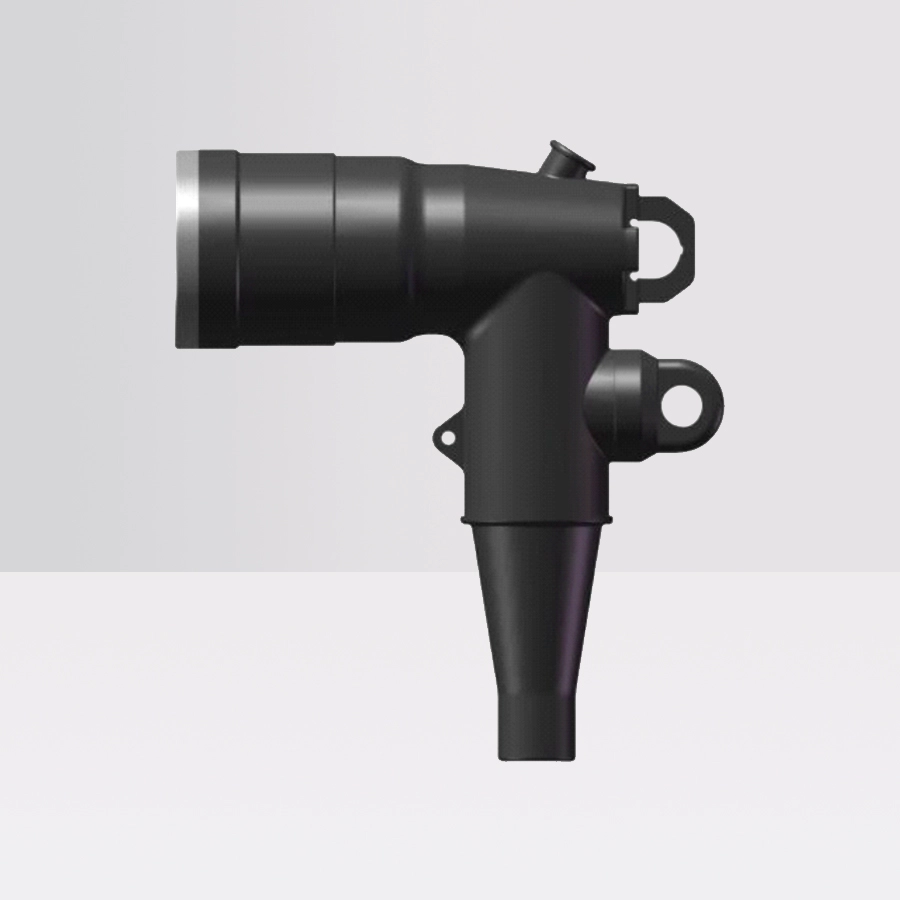

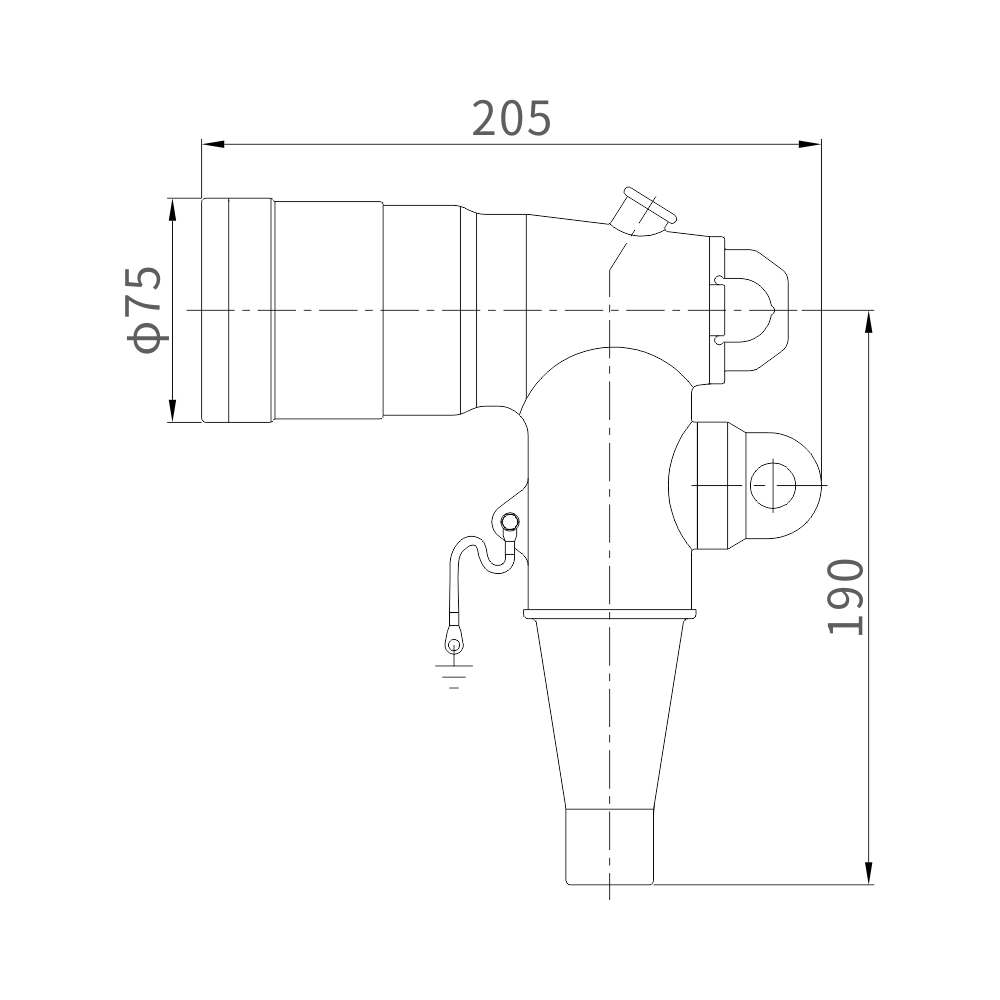

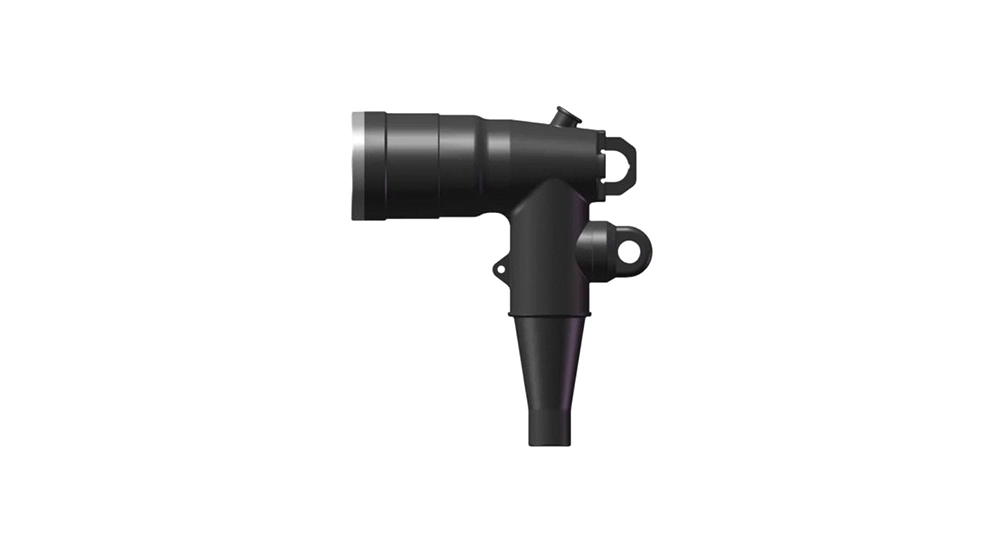

The American-style 15kV/200A elbow connector is designed for 200A electrical systems, widely used for high-voltage electrical connections in pad-mounted transformers, ring main units cable branch boxes, underground transformers, and other electrical equipment. Compatible interfaces include: 200A single-way bushings, 200A double-way bushings, 200A busbar interfaces, and 200A interfaces of American-style T2 connectors.

The product interface complies with the 200A bushing design standards specified in IEEE 386.

►Features

• Fully insulated, fully sealed, fully shielded, easy to install, with reliable anti-disengagement protection;
• Test points can be equipped with voltage indicators or fault indicators to display equipment energization status and fault conditions;
• The conductive rod connector has an arc-extinguishing function and can serve as a load switch to interrupt 200A current, but cannot break fault currents;
• Effectively resolves the issue of electric field stress concentration at high-voltage connection points and cable outer shielding layer discontinuities;
• Manufactured using high-quality ethylene propylene diene monomer (EPDM) rubber material, exhibiting excellent resistance to corona, partial discharge, and weathering.

►Main Electrical Characteristics

Click 15kV/630A shielded front connector to learn more about the products.
