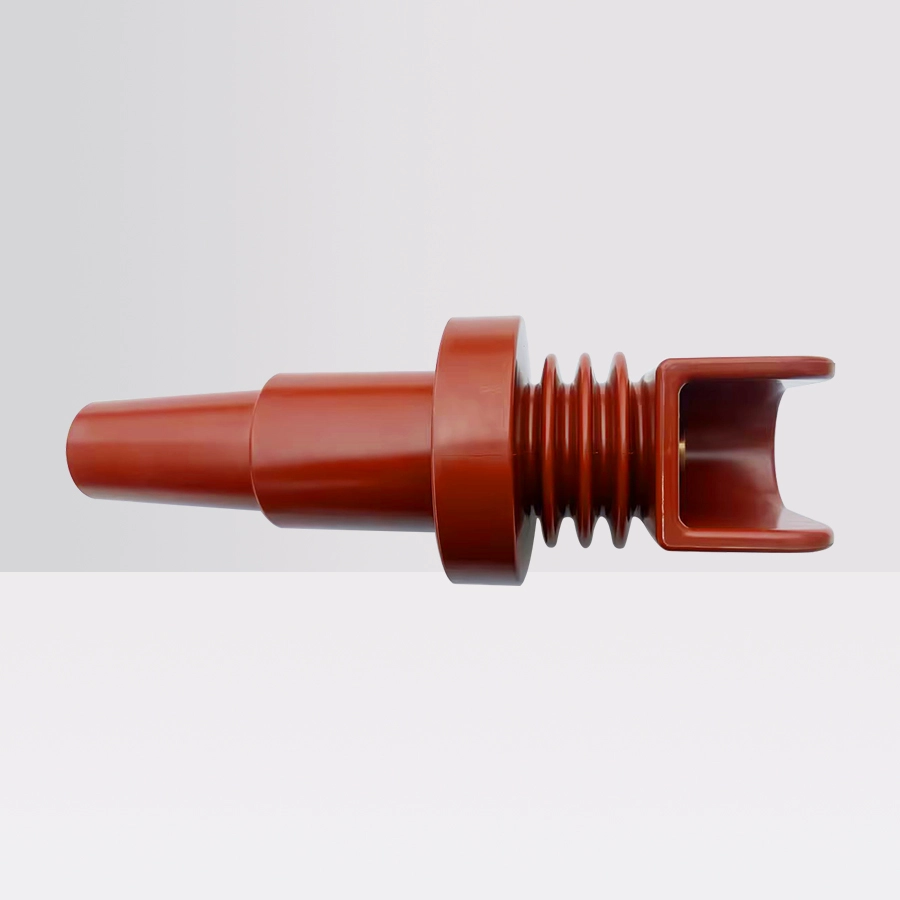

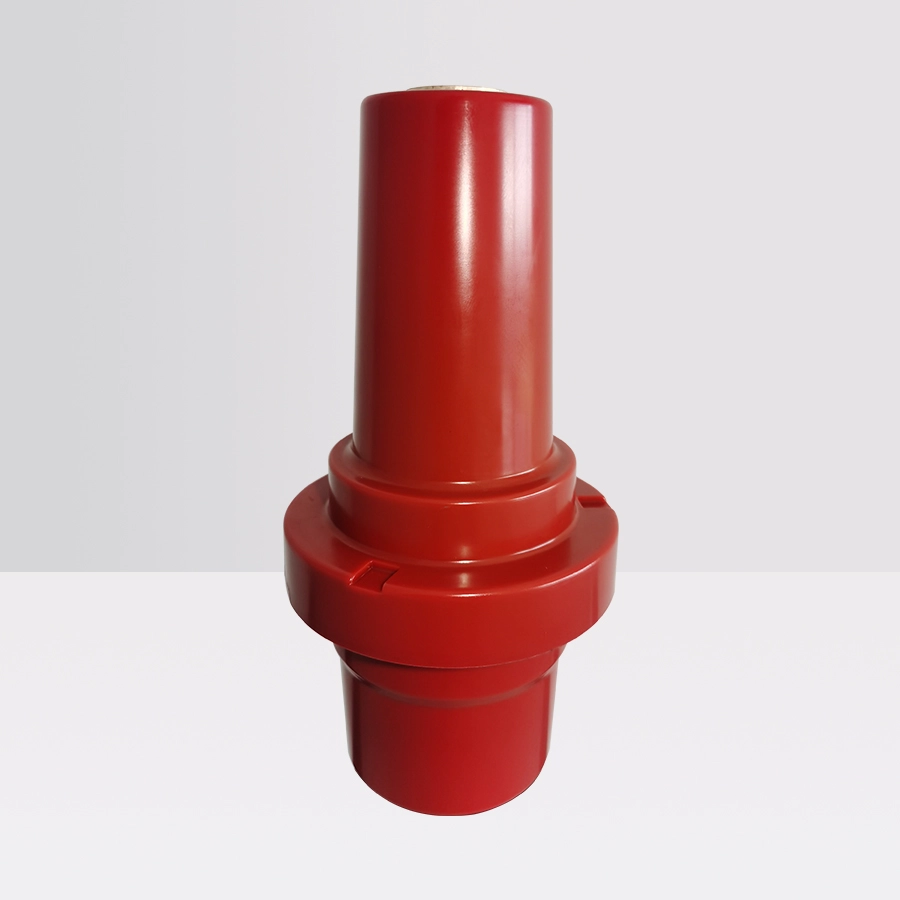

200A Transformer Bushing
- Applicable to underground transformers and conventional pad-mounted transformers, providing connection interfaces for 200A cable joints.
Applicable to underground transformers and conventional pad-mounted transformers, providing connection interfaces for 200A cable joints.
►Characteristics
• Designed in compliance with State Grid standardization requirements. This product is rated for 12KV voltage and 200A current.
• Installation method: Pressure plate mounting.
►Main Electrical Performance
| NO. | TEST ITEM | TEST STANDARD |
| 1 | Air Tightness (Pa-m³/s) | ≤1.0×10-8 |
| 2 | X-ray Inspection | No bubbles, no impurities |
| 3 | Power Frequency Withstand Voltage (AC) | 42kV，1min |
| 4 | Partial Discharge | 15kV，≤5pC |

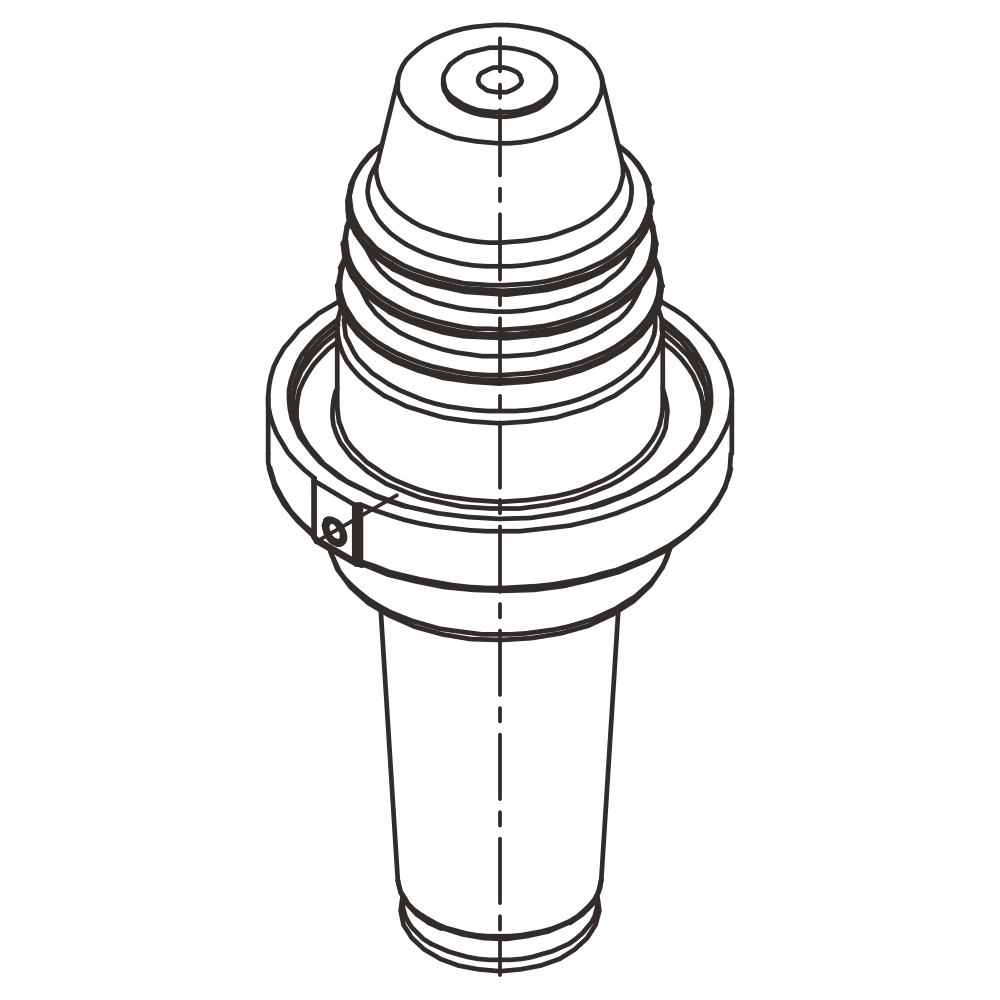

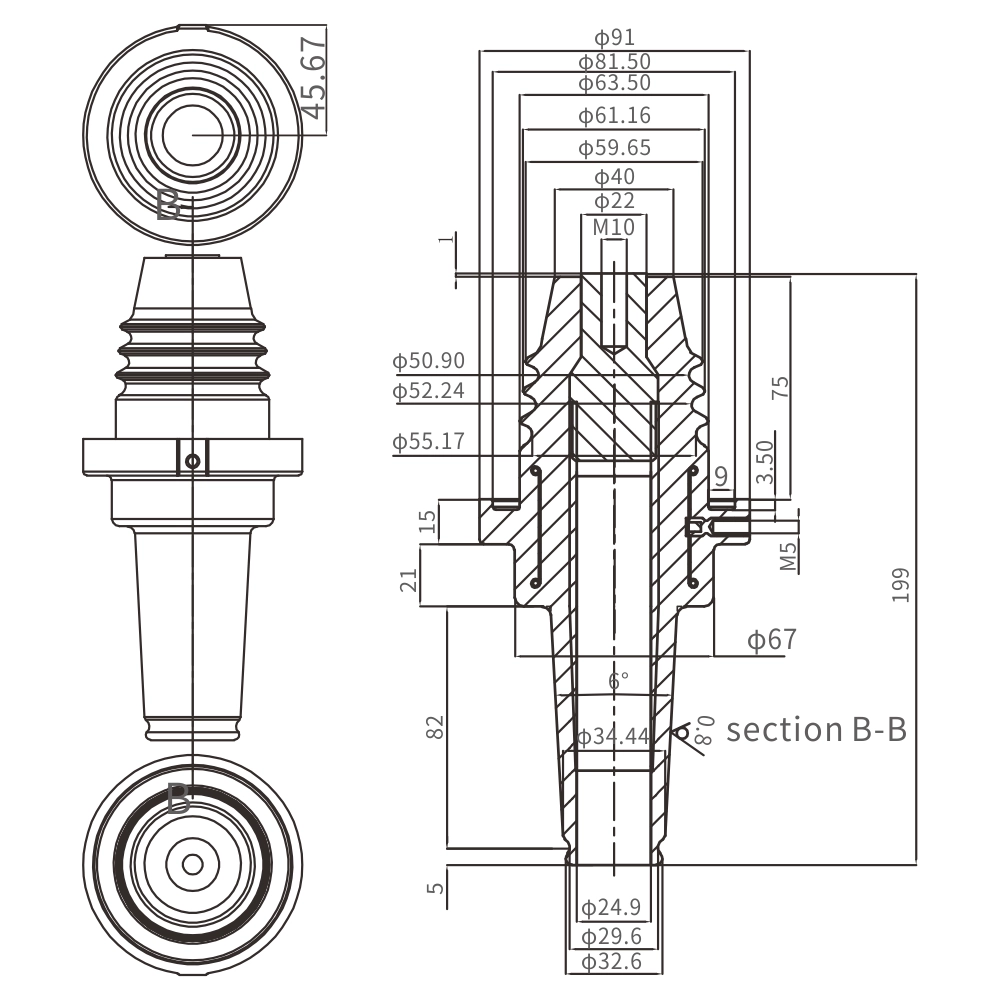

►Dimensions and Figure
Click Transformer Manufacturer China to learn more about the products.
