Versatile Distribution Transformer Solutions for Diverse Grid Applications
Distribution transformers are fundamental assets in electrical networks, converting medium voltage to low voltage for final consumption. Depending on installation environment, load profile, and maintenance strategy, operators select among several proven designs. Three widely adopted categories serve the majority of residential, commercial, and light industrial applications worldwide.

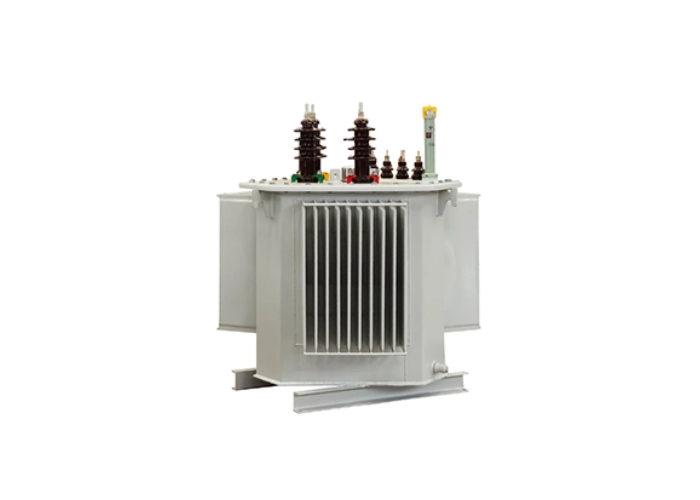

The Oil-Immersed Distribution Transformer remains the most common choice for outdoor pad‑mounted and pole‑mounted installations. Its mineral oil or biodegradable ester fluid provides excellent dielectric strength and heat dissipation, enabling high overload capacity and extended thermal life. These units are typically rated from 50 kVA to several MVA, with on‑load or off‑circuit tap changers for voltage regulation. Oil‑filled designs are particularly suited for areas with moderate ambient temperatures and where periodic oil sampling and filtration can be performed. Their robust construction and long track record make them a cost‑effective workhorse for urban and rural networks alike.
For indoor installations, commercial buildings, hospitals, and underground substations, the Dry Type Distribution Transformer offers a fire‑safe, maintenance‑friendly alternative. Cast in epoxy resin or vacuum‑pressure‑impregnated with class F or H insulation, dry‑type transformers eliminate the risk of oil leaks and are self‑extinguishing in the event of internal faults. They operate quietly and can be placed close to load centres, reducing cable losses. Although typically more expensive than oil‑filled equivalents, their reduced civil works and insurance costs often offset the initial investment. Standard ratings range from 100 kVA to 10 MVA, with aluminium or copper windings available to meet specific efficiency targets.

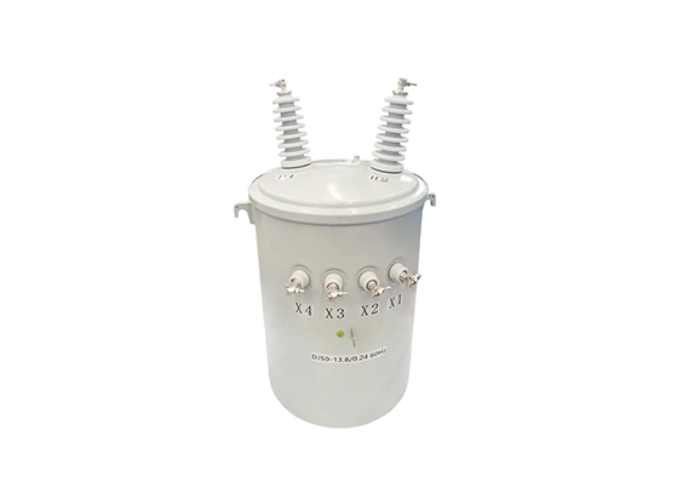

In rural electrification, agricultural irrigation, and distributed generation interconnections, the Single Phase Overhead Distribution Transformer plays a vital role. These compact units are mounted directly on utility poles, serving small communities or individual farms with a single‑phase supply derived from a two‑phase or three‑phase primary line. They are available in oil‑filled or dry‑type construction, though oil‑immersed versions dominate due to lower cost and simpler cooling. Ratings typically span 10 kVA to 167 kVA, with secondary voltages of 120/240 V for North American markets or 230 V for other regions. Their lightweight design facilitates easy installation and replacement using standard line‑crew equipment.
Zhuhai Comking Electric Co., Ltd. manufactures all three transformer types – oil‑immersed units up to 10 MVA, dry‑type units in both vacuum‑cast and open‑wound variants, and single‑phase overhead models with multiple primary voltage taps. The company’s products comply with IEC 60076 and IEEE C57 standards, and are routinely subjected to short‑circuit tests, lightning impulse tests, and temperature‑rise verification. Customisation options include corrosion‑resistant enclosures, specialized bushing arrangements, and smart sensor interfaces for remote monitoring. As grid operators worldwide seek reliable and adaptable distribution equipment, these transformer families continue to serve as indispensable components of the power delivery infrastructure.
