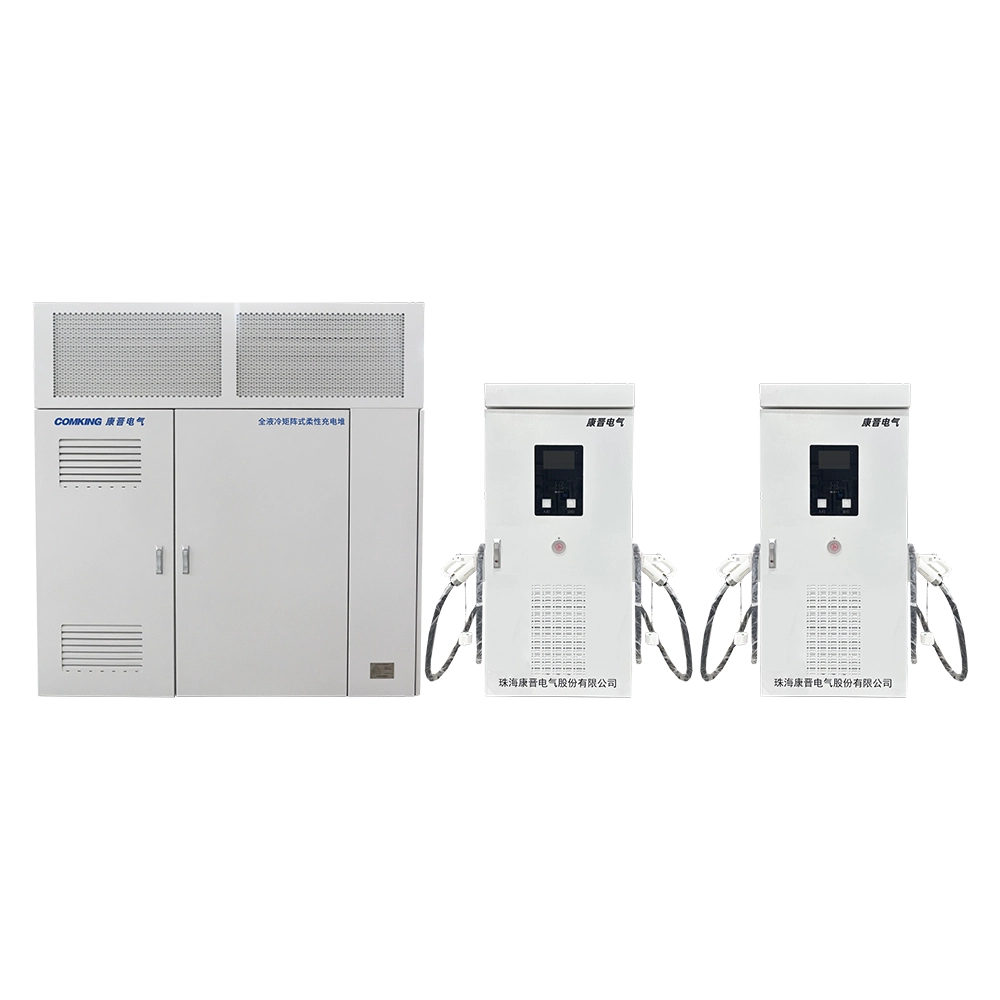

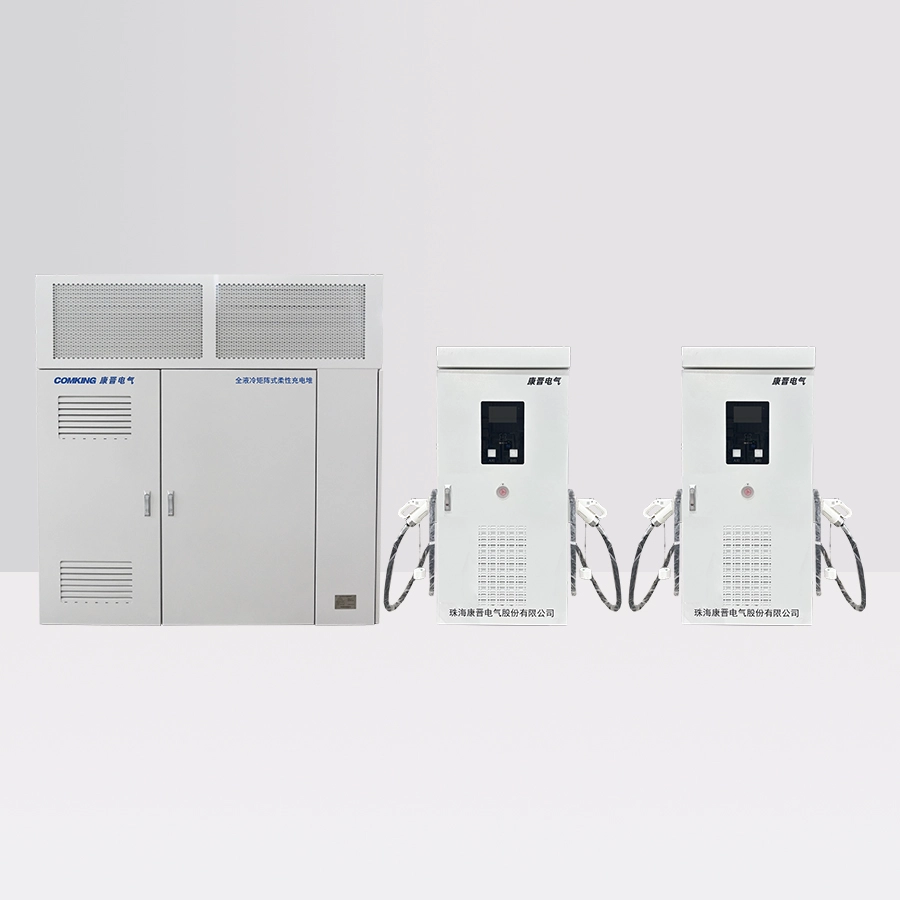

CKEV-DD240~1200 Fully Liquid-Cooled Matrix Flexible Charging Stack
- The fully liquid-cooled supercharging system breaks through conventional fast-charging limitations with full liquid cooling design covering both power cabinets and charging terminals, equipped with 40kW liquid-cooled silent modules for high protection and low noise performance upgrade.
►Overview
The fully liquid-cooled supercharging system breaks through conventional fast-charging limitations with full liquid cooling design covering both power cabinets and charging terminals, equipped with 40kW liquid-cooled silent modules for high protection and low noise performance upgrade. System power reaches 1200kW, with liquid-cooled terminals supporting 1000A ultra-high current, achieving 1200kW peak power output on the 1000V voltage platform, delivering a “short rest, worry-free range” ultra-fast charging experience.
►Technical Parameter
|
Product Name |
240–1200kW Fully Liquid-Cooled Matrix Flexible Charging Stack |
|
Product Model |
CKEV-DD240/CKEV-DD360/ CKEV-DD480/CKEV-DD640/CKEV-DD720/CKEV-DD960/CKEV-DD1040/CKEV-DD1200 |
|
Rated Power |
240kW/360kW/480kW/640kW/720kW/960kW/1040kW/1200kW |
|
Input Voltage Range |
380VAC±15%，3 phase+N+PE |
|
Input Frequency |
45~65Hz |
|
Number of Charging Interfaces |
4-16 Guns (Supercharging Single Gun Occupies 2 Ports) |
|
Output Voltage |
200~1000VDC |
|
Max Single-Gun Output Current |
800A Ultra-Fast Terminal / 600A Ultra-Fast Terminal / 250A Fast Terminal / 1000A Ultra-Fast Terminal |
|
Rated Output Power per Gun |
240/250/600/800/1000kW |
|
Charging Interface |
GBT Charging Coupler |
|
Network Connectivity |
4G/Ethernet |
|
Activation Method |
Card / QR Scan / Plug&Charge / VIN |
|
Display Type |
7-inch LCD Touch Screen |
|
Cable Length |
5m (customizable) |
|
Efficiency |
≥ 94% (above half load) |
|
Operating Temperature |
-20℃~+50℃ |
|
Operating Humidity |
5~90%RH, Non-condensing |
|
Protection Rating |
IP54 |
|
Installation Method |
Floor-standing |
|
Enclosure Material |
Sheet Metal Powder-Coated Enclosure |
|
Safety Features |
AC input over/under-voltage protection, DC output over/under-voltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection protection, door-open protection, contactor sticking protection, etc. |
►Product Features
High Protection
Fully sealed module design, dust-proof, salt-spray resistant, anti-condensation.
High Module Utilization
Full matrix PDU dynamic allocation module, dispatching any module to any gun, achieving 100% module utilization.
Zero Noise
Liquid cooling with silent module operation.
Ultimate Experience
5-minute charge for 200km+ range.
Contact us for DC charging pile manufacturers gets Solution.
